04-07 Ford Powerstroke 6.0L Turbo Upgrade Unison Ring 13.2mm 9 Vanes Kit

Description:

Powerstroke 6.0L Turbo Nozzle/Unison Ring 13.2mm 9 Vanes Repair Kit

Application:

Stock turbo parts Fitment – No modifications required.

04-07 Powerstroke 6.0? Turbo.

Item Details:

High-Quality Stainless Steel unison/nozzle ring, special Heat Treatment Nitriding Treatment, Stronger & More Wear Resistant & More Durable

High Nickle content Alloy 13.2mm vanes

Reference OE Part #: 3C3Z-6C885-A

Stepped gap seal ring on the turbine end

Stepped gap seal ring on the compressor end

Twin hydrodynamic journal bearings

360-degree thrust bearing system

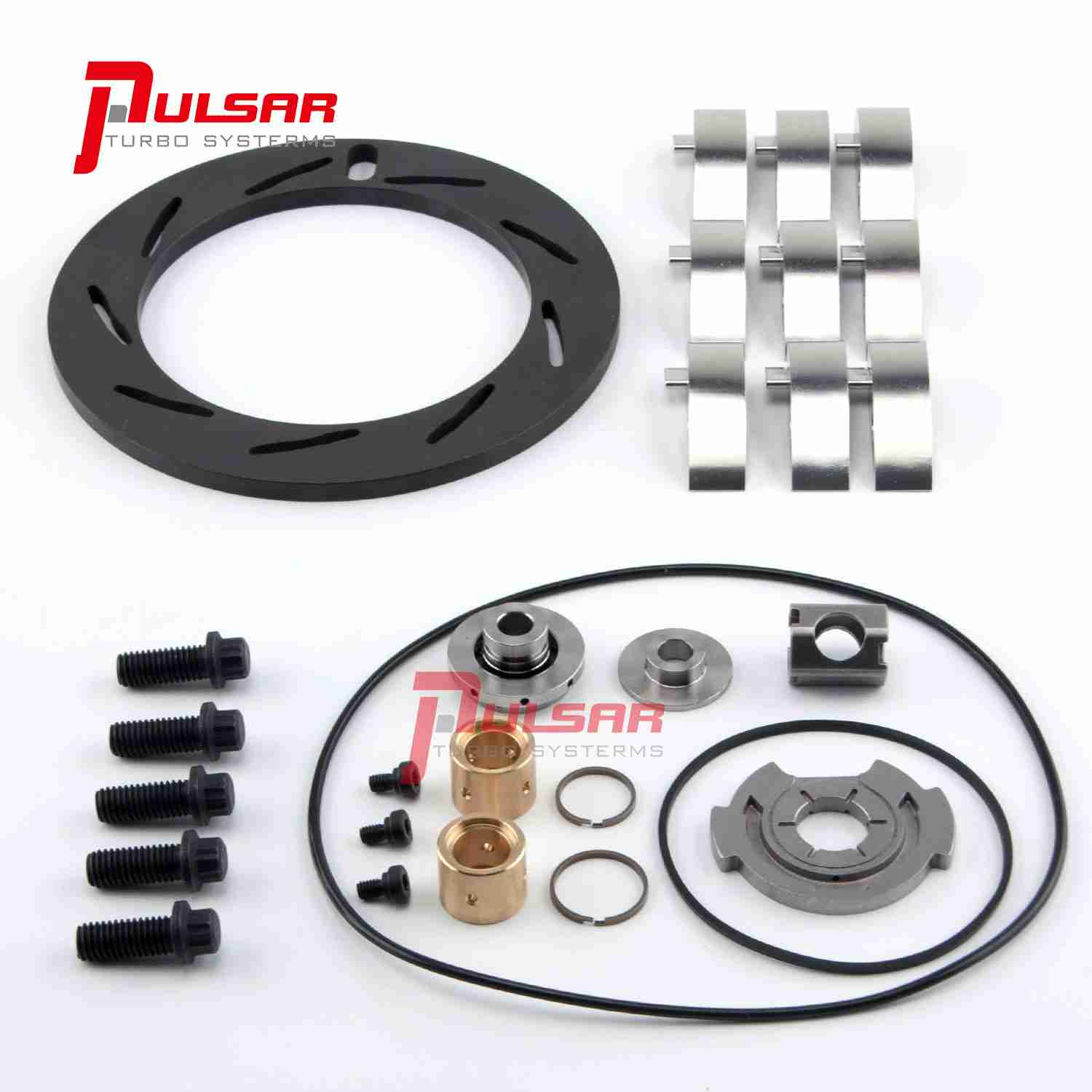

This rebuild kit contains:

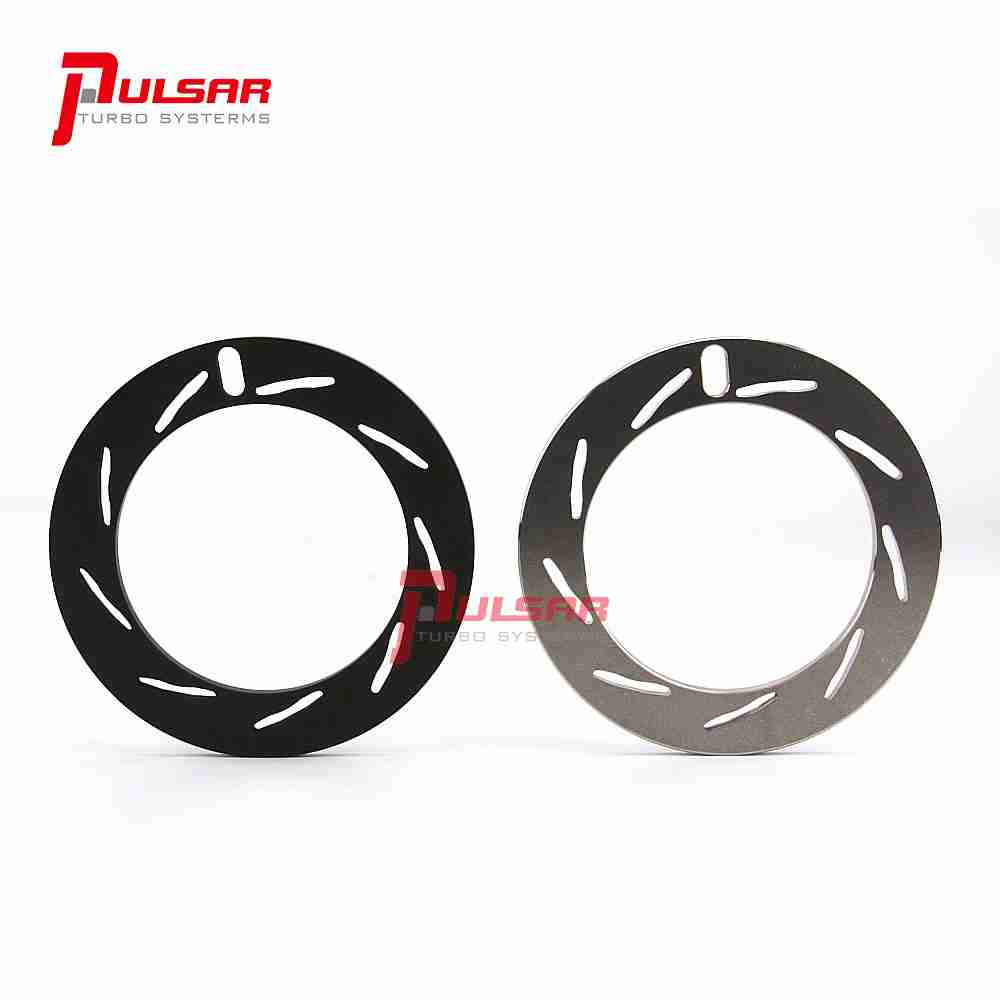

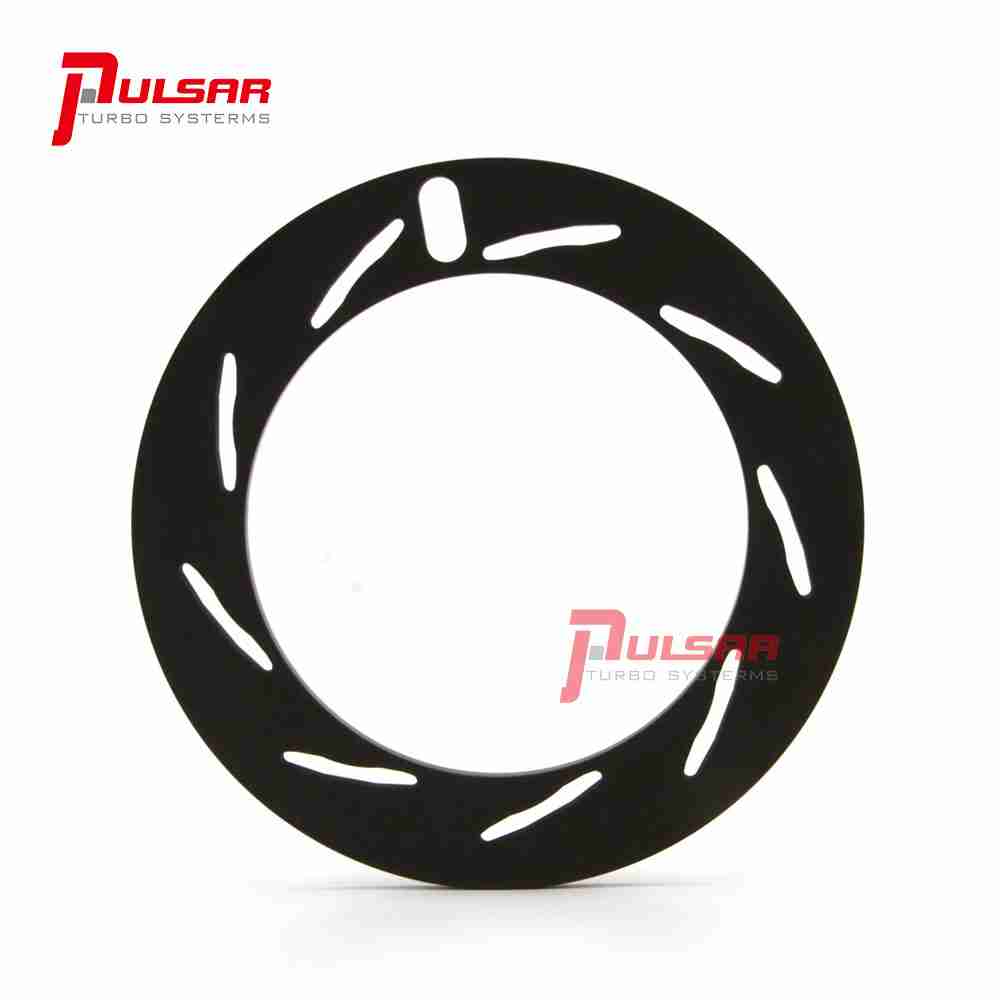

1*Nitriding Treatment Stainless steel unison/nozzle ring

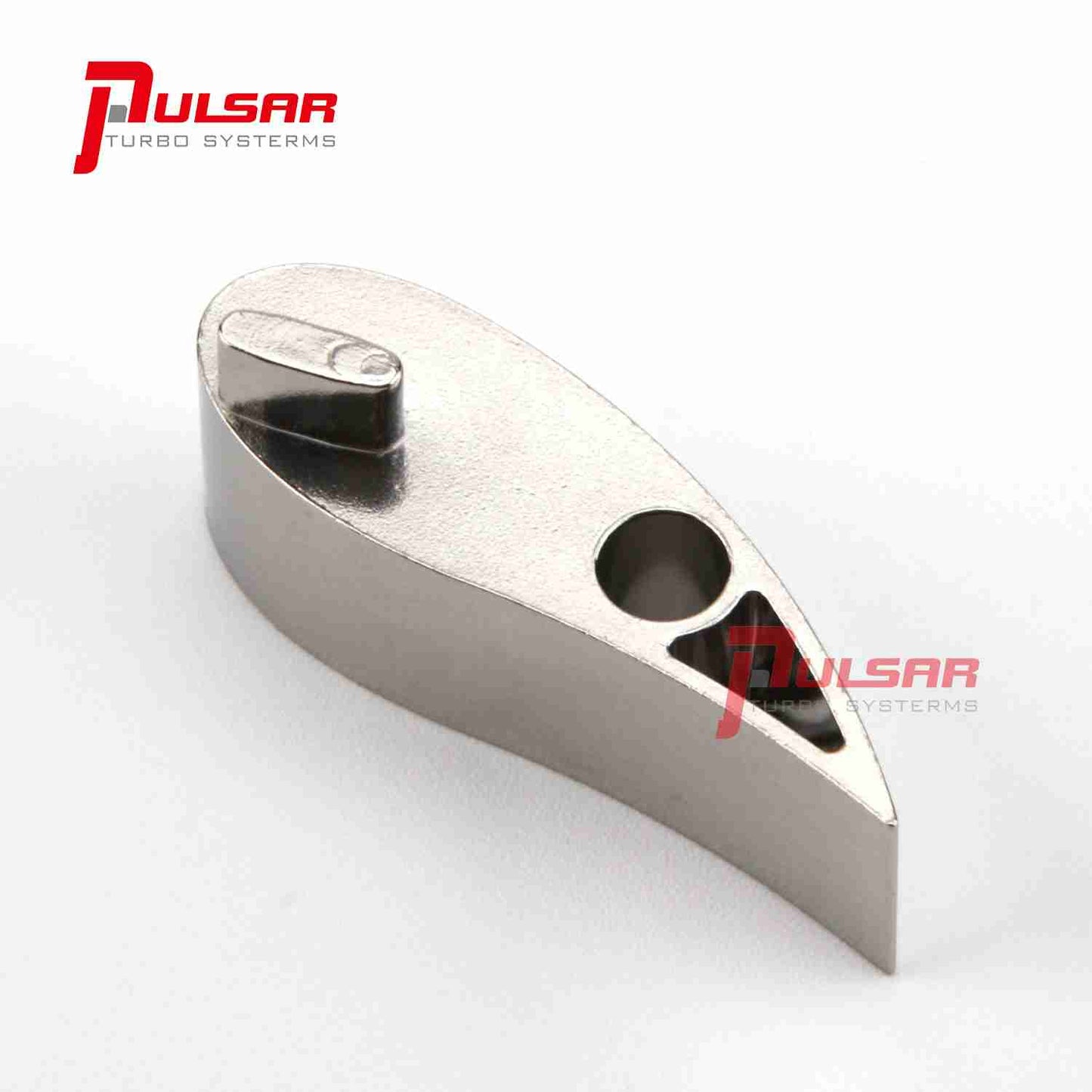

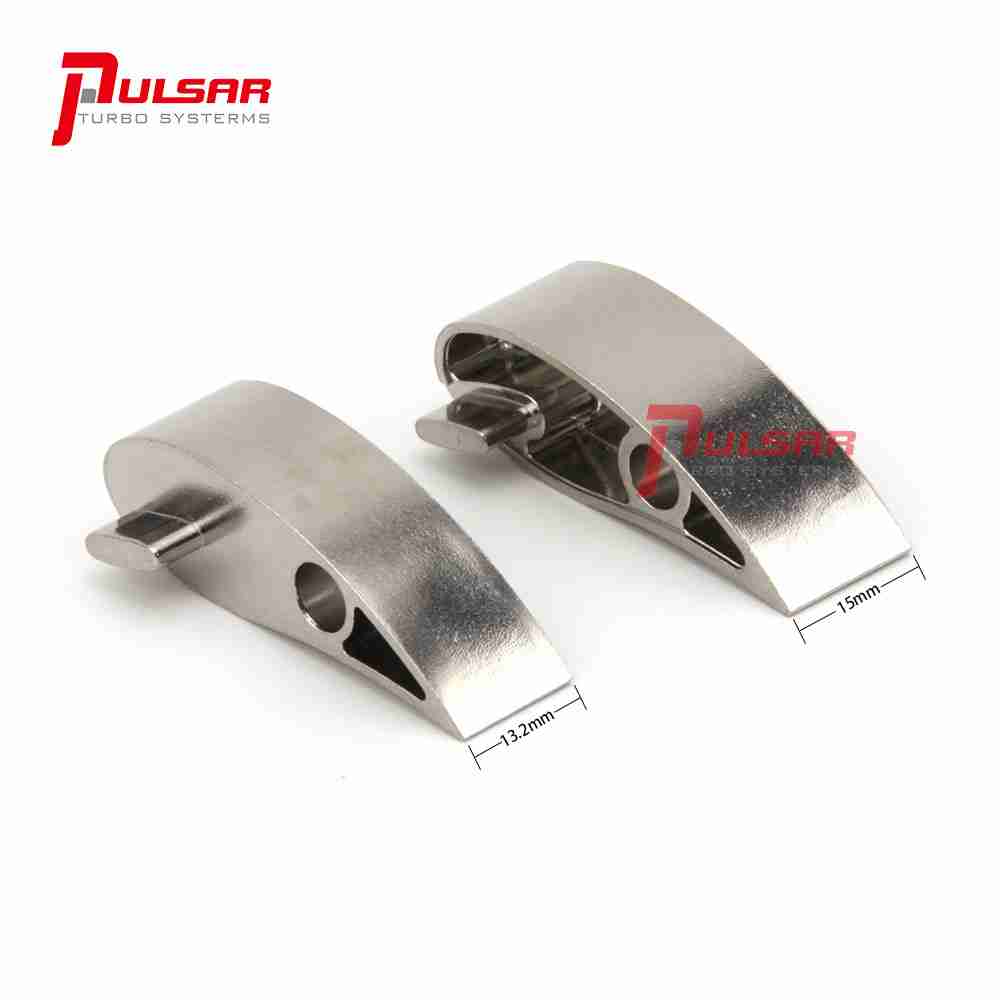

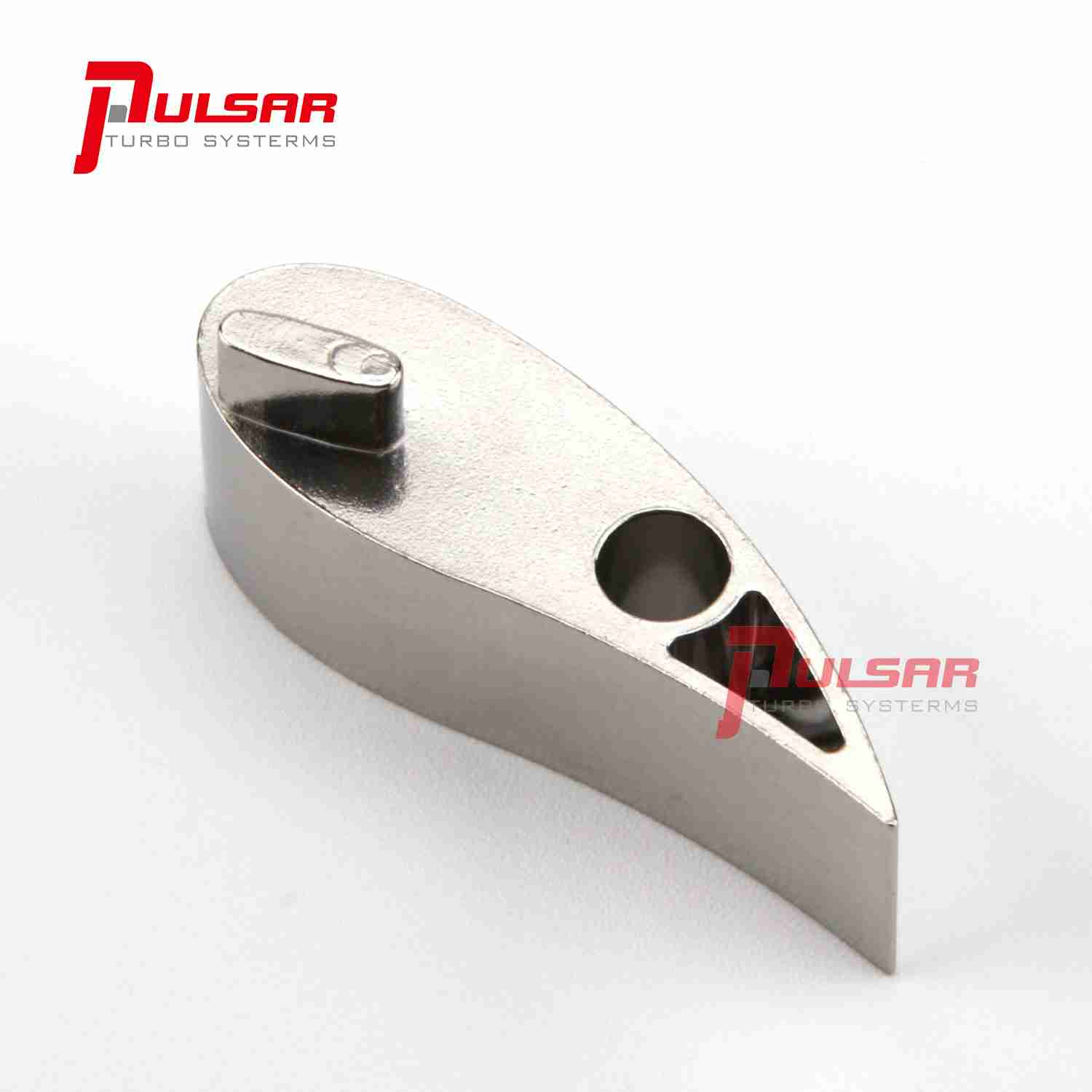

9*Nickle content Alloy 13.2mm vanes

1*SEAL O-RING

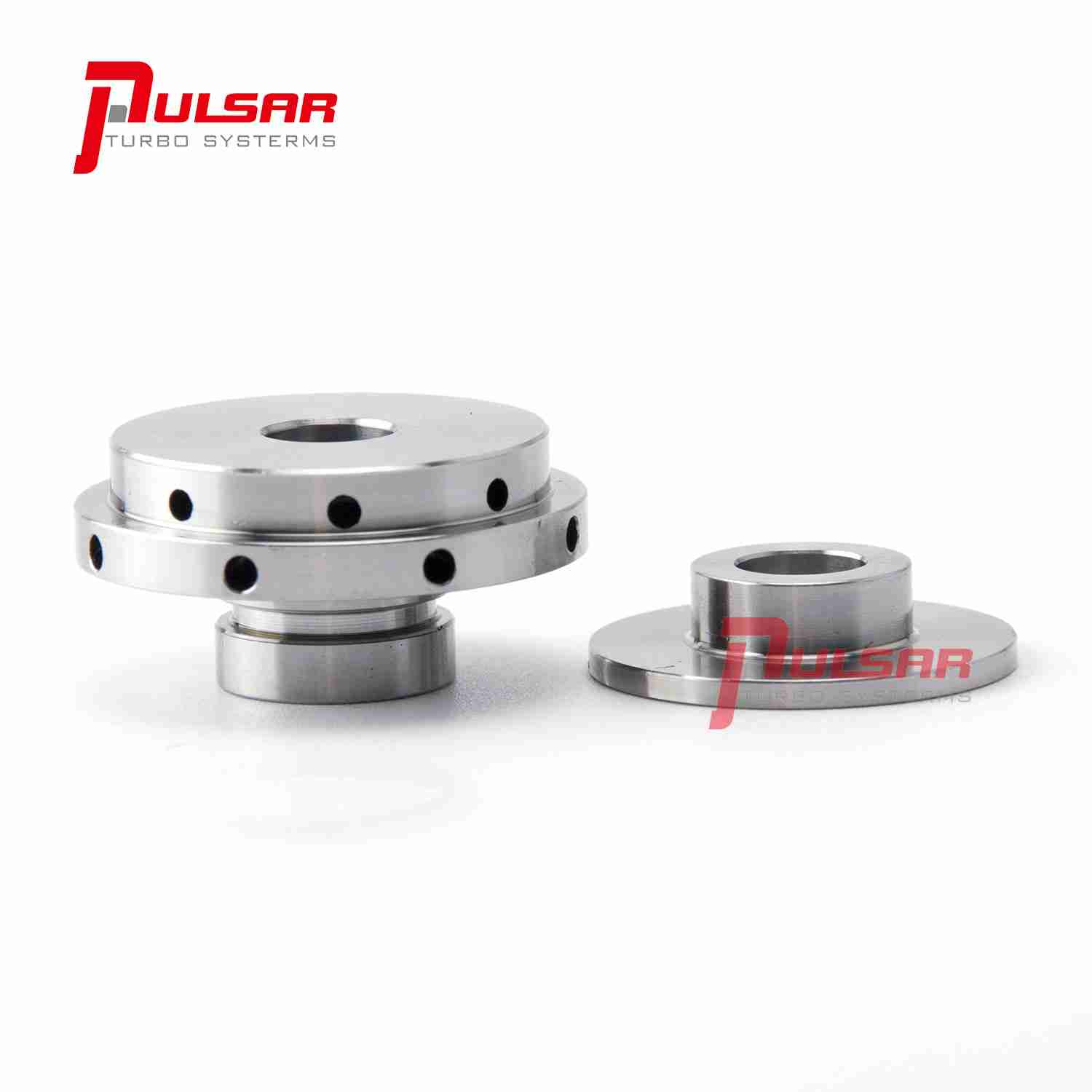

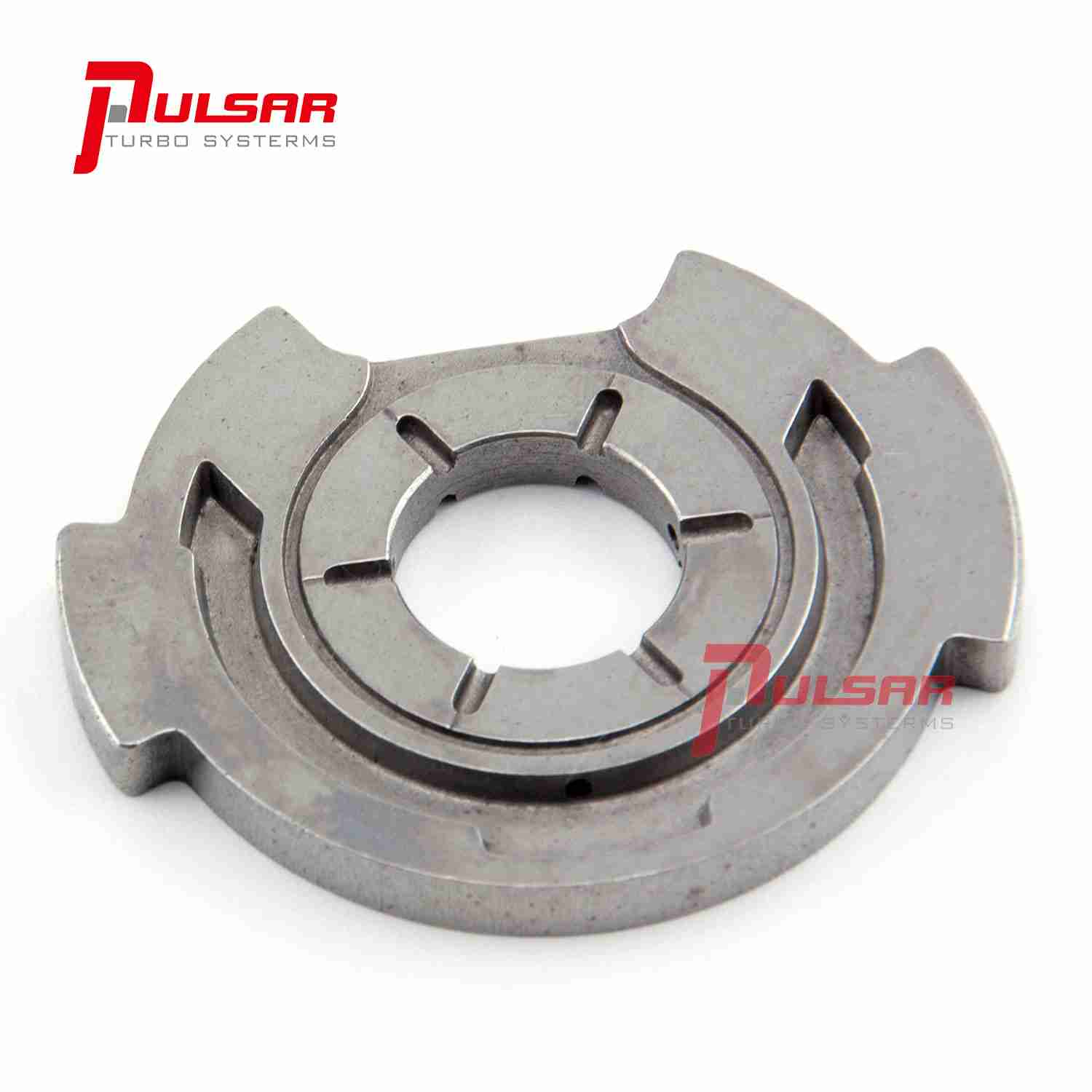

1*360 DEGREE THRUST BEARING

1*THRUST COLLAR

1*THRUST SPACER

3*SEAL PLATE BOLT

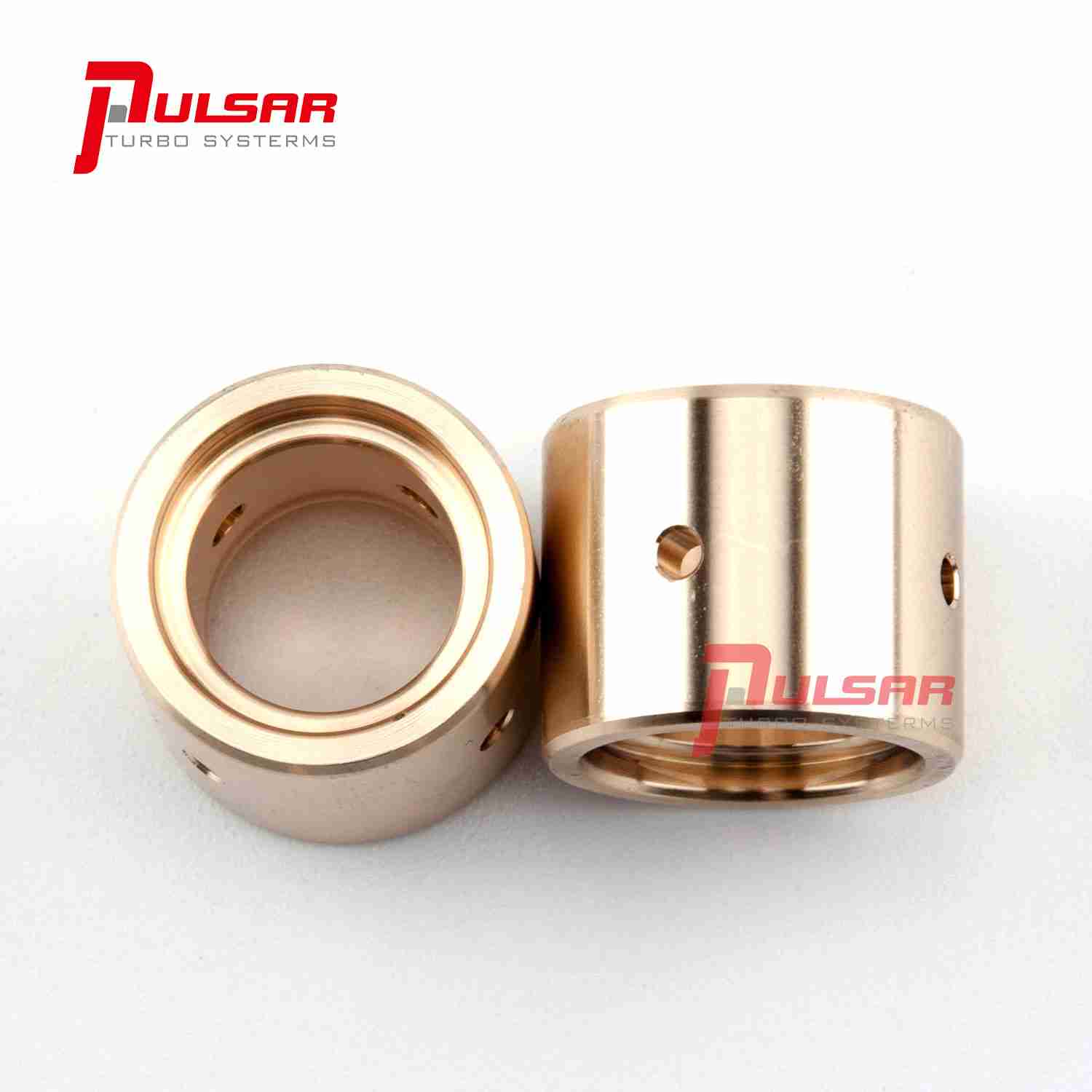

2*JOURNAL BEARING

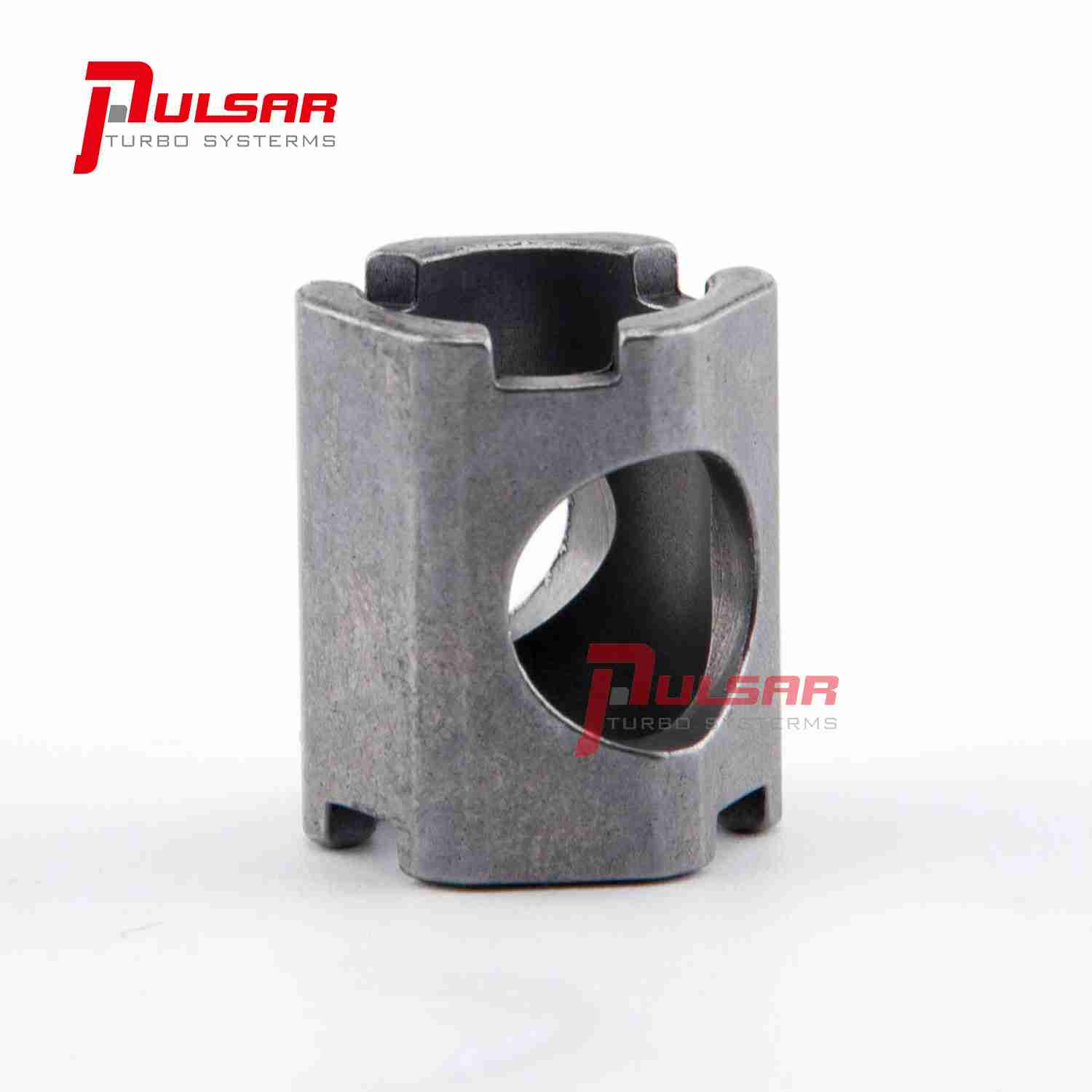

1*BEARING SPACER

1*SMALL SEAL O-RING

5*HOUSING BOLT

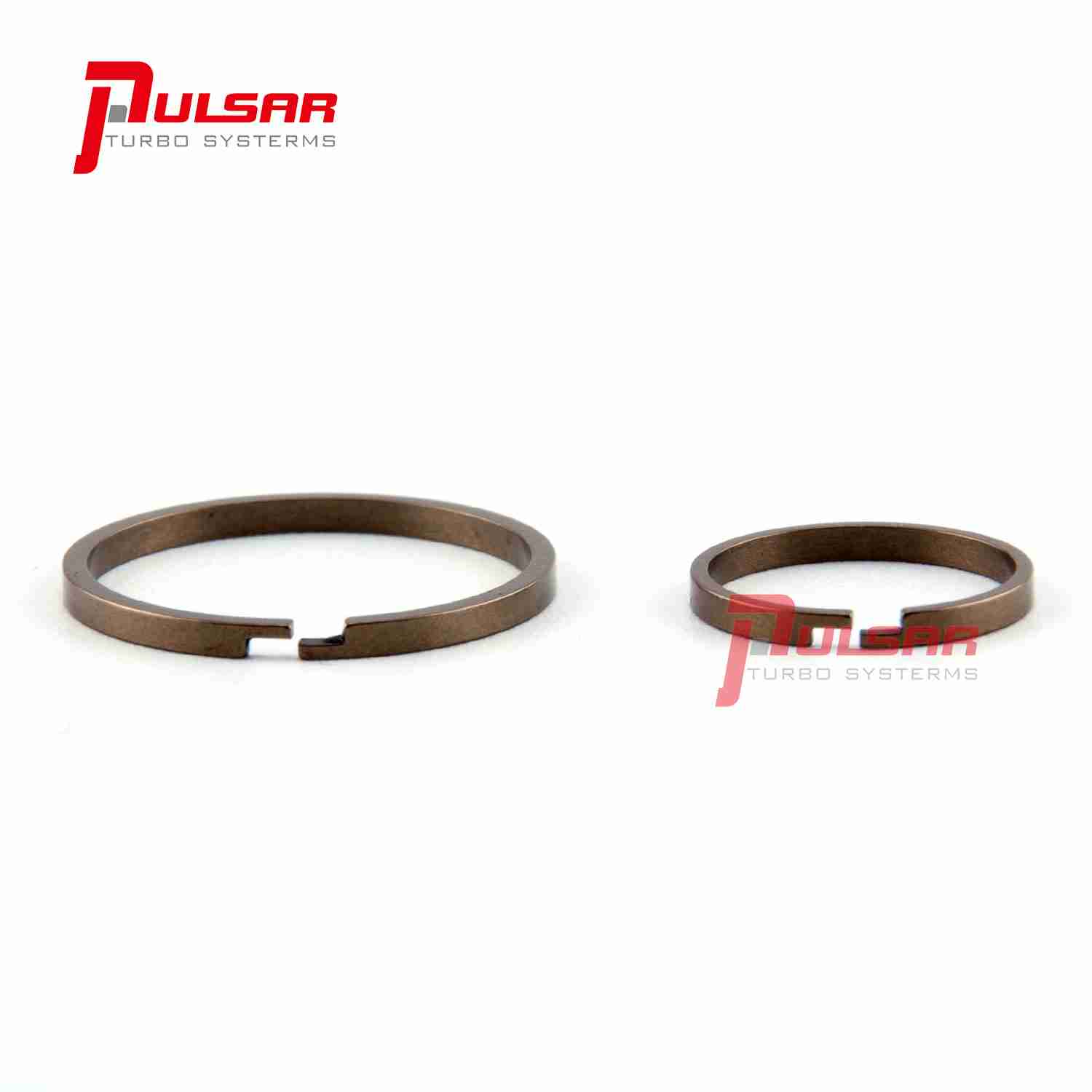

1*COMPRESSOR END SEAL RING (STEPPED GAP)

1*TURBINE END SEAL RING (STEPPED GAP)

Special Note:

1. Please DOUBLE check your sizing prior to purchase.
2. Professional install is highly recommended! Please ask all questions prior to purchase!
3. Highly recommended to get the CHRA VSR balanced after rebuild (is required for warranty purposes)!
