05-07 Ford 6.0 Powerstroke Turbo Billet Wheel Upgrade Unison Rebuild Kit 13.2mm Vanes

Description:

Billet Compressor Wheel + Nitriding Treatment Unison Ring + 9 Vanes + Rebuild Repair Kit

for 05-07 Ford 6.0L Powerstroke Diesel Stock Turbo Only

Application:

Stock turbo parts Fitment – No modifications required.

2005-2007 Ford 6.0L Powerstroke Stock Turbo ONLY

Item Details:

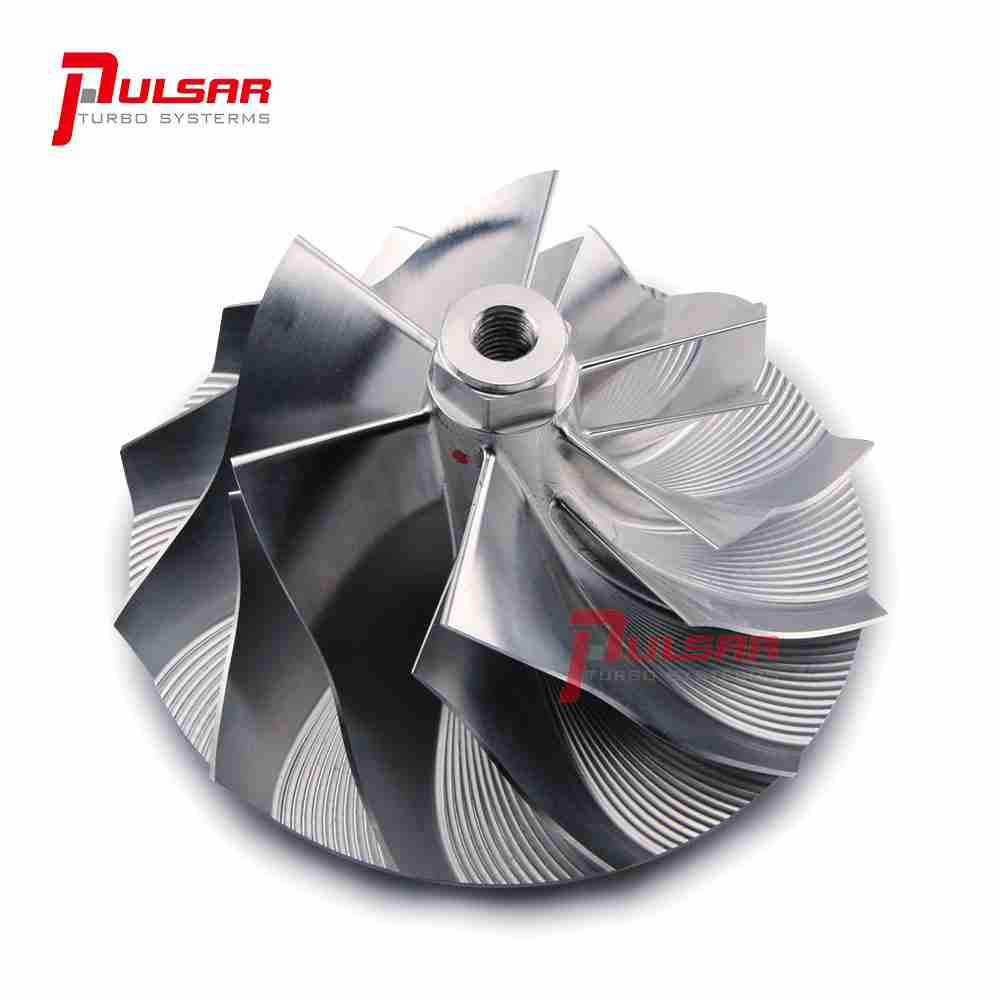

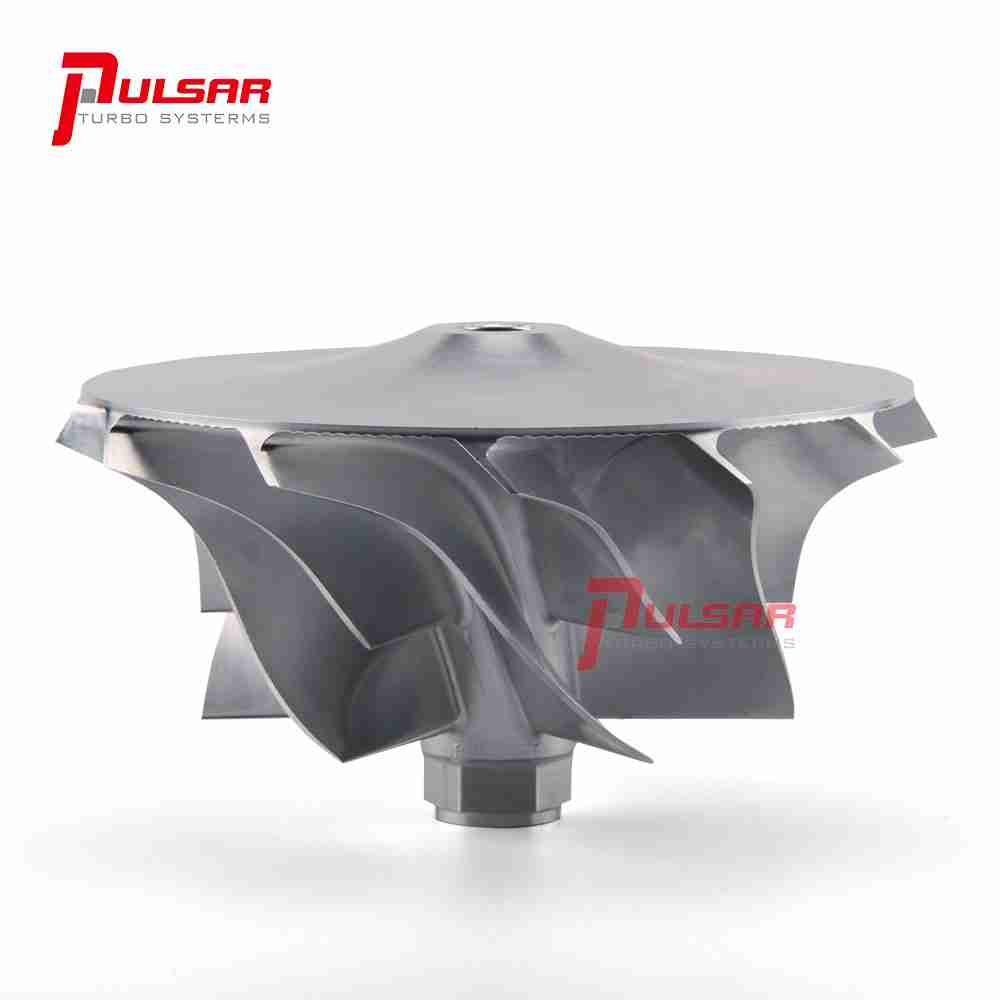

Billet Compressor Wheel Inducer: 56.83mm

Billet Compressor Wheel Exducer/Tapered Tip Exducer: 82.04mm/87.33mm

Billet compressor Wheel Blade Height: 33.81mm

Billet compressor Wheel Bore: Threaded-M7x1.0LHT

Billet compressor Wheel Blades: 6+6

Stepped gap seal ring on the turbine end

Stepped gap seal ring on the compressor end

Twin hydrodynamic journal bearings

360-degree thrust bearing system

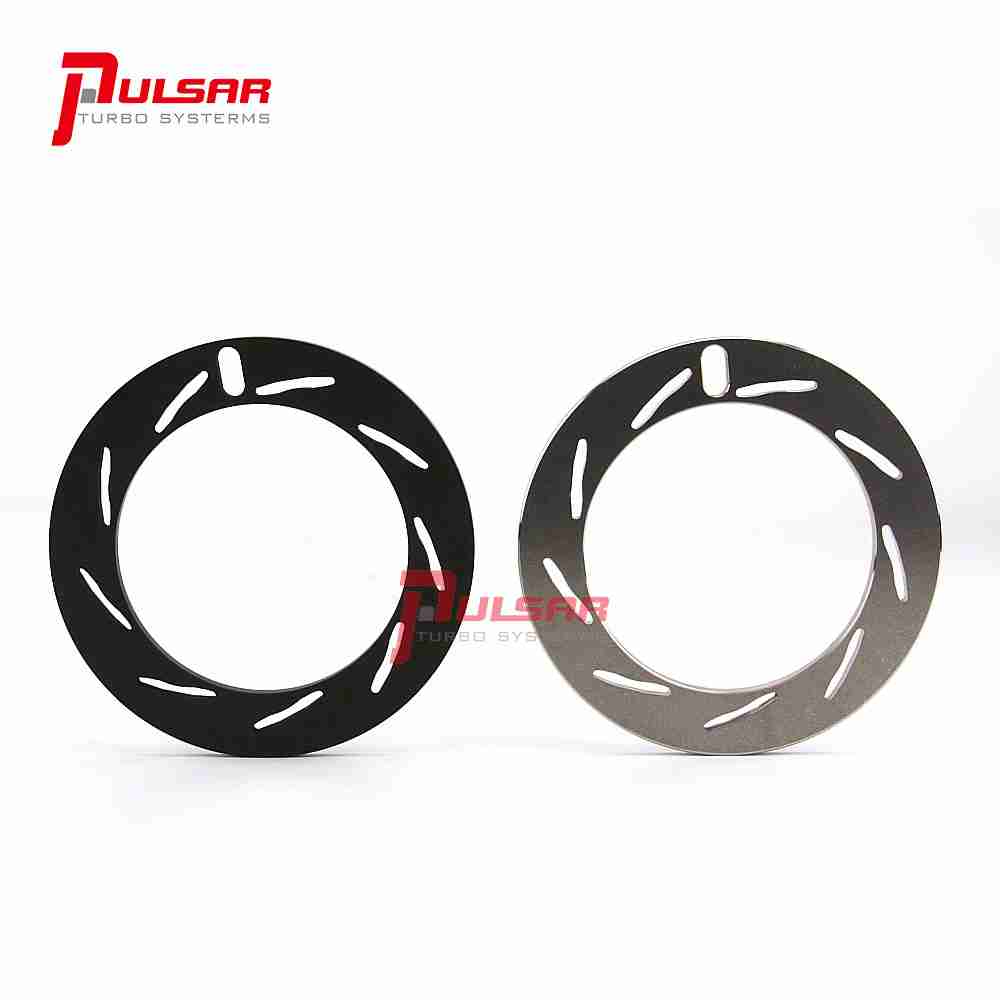

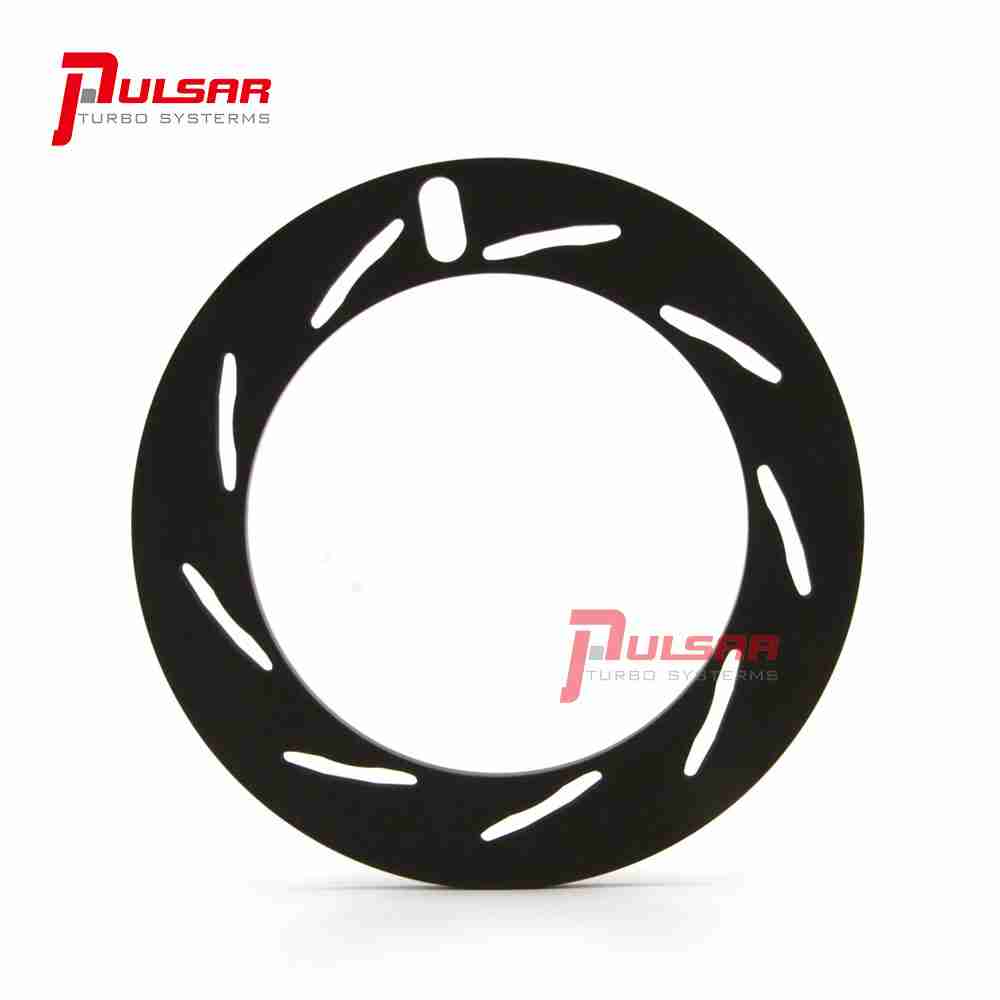

High-Quality Stainless Steel unison/nozzle ring, special Heat Treatment – Nitriding Treatment, Stronger & More Wear Resistant & More Durable

High Nickle content Alloy 13.2mm vanes

Reference OE Part #: 3C3Z-6C885-A

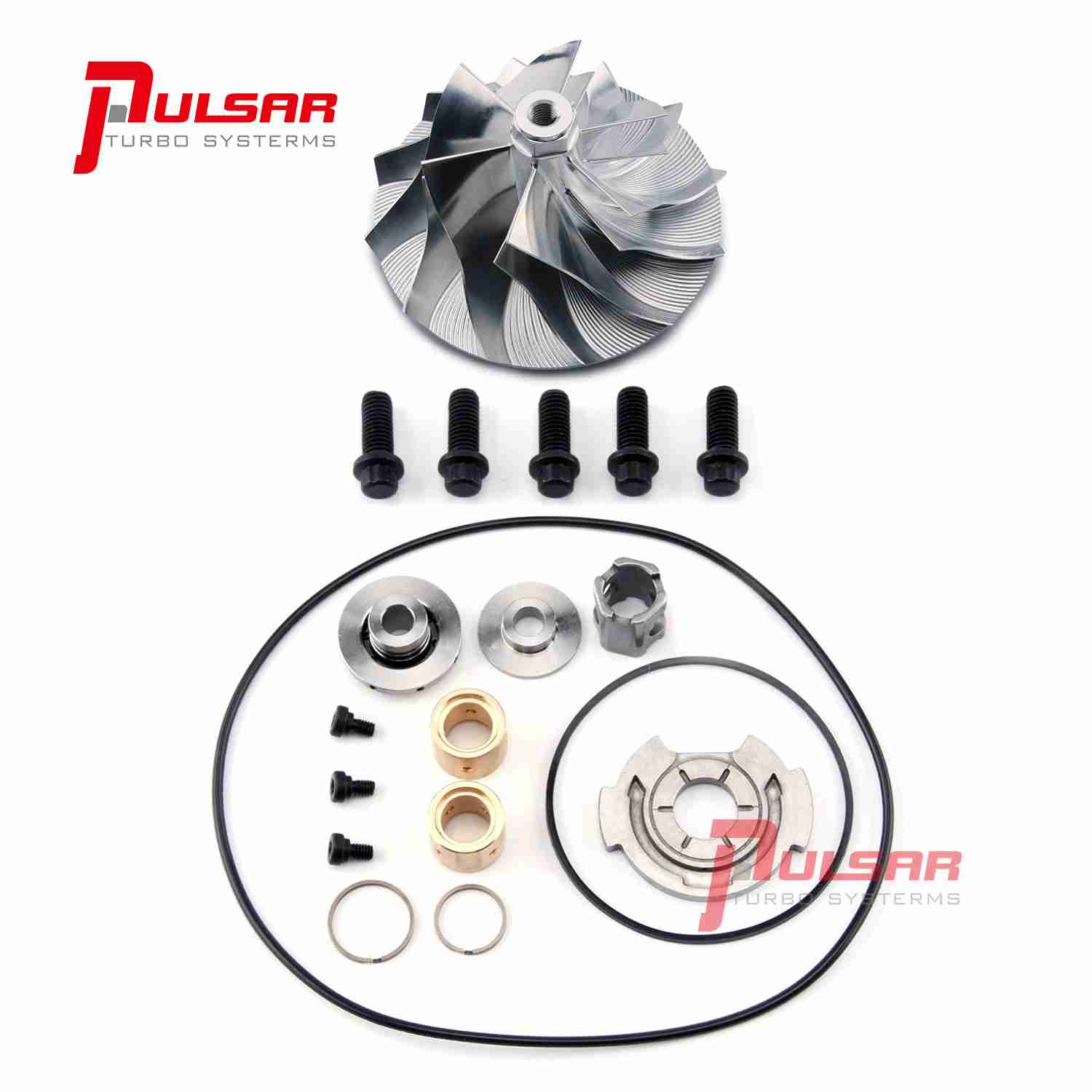

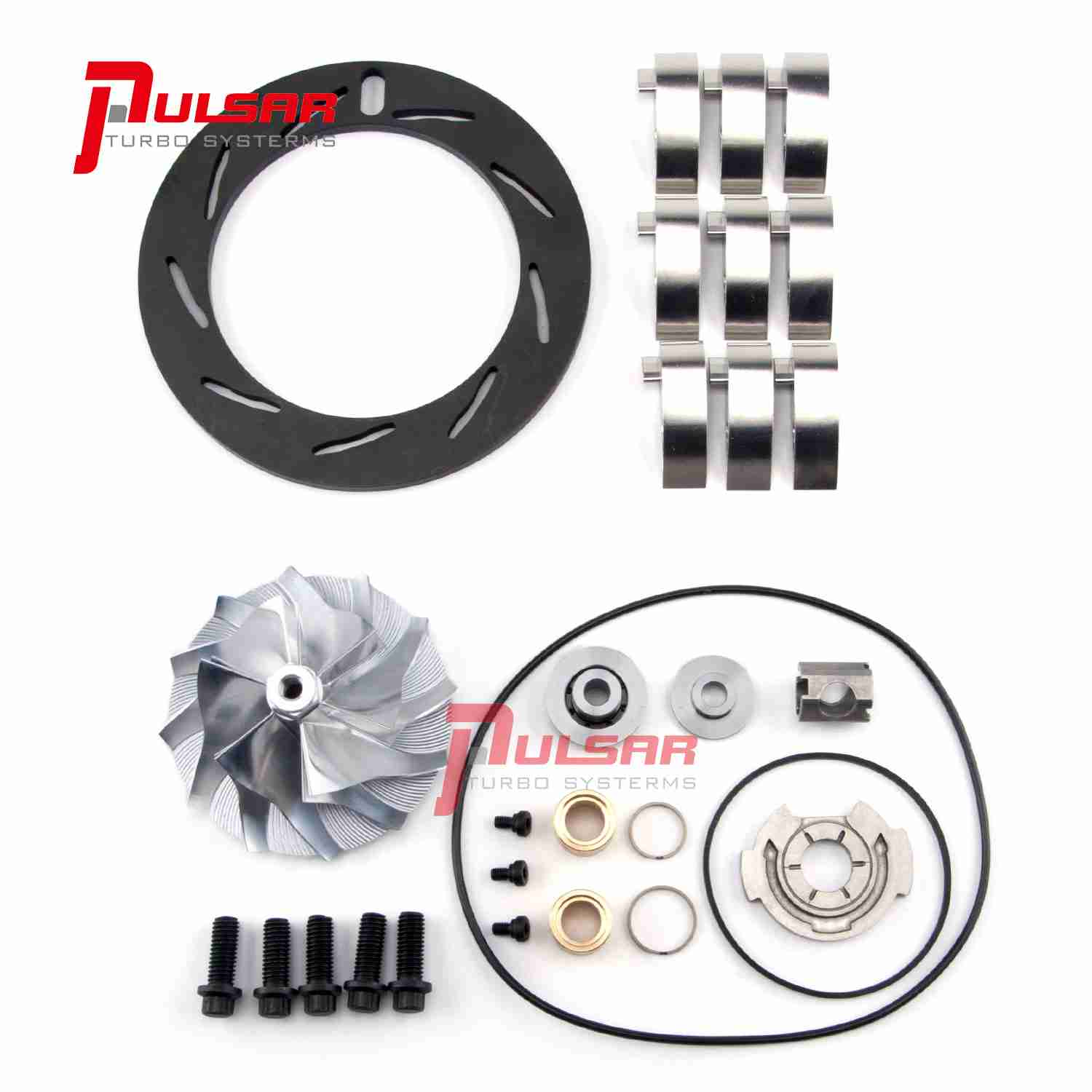

This rebuild kit contains:

1*BILLET COMPRESSOR WHEEL

1*Stainless Steel Nitriding Treatment unison/nozzle ring

9*Nickle content Alloy 13.2mm vanes

1*SEAL O-RING

1*360 DEGREE THRUST BEARING

1*THRUST COLLAR

1*THRUST SPACER

3*SEAL PLATE BOLT

2*JOURNAL BEARING

1*BEARING SPACER

1*SMALL SEAL O-RING

5*HOUSING BOLT

1*COMPRESSOR END SEAL RING (STEPPED GAP)

1*TURBINE END SEAL RING (STEPPED GAP)

Special Note:

1. This billet compressor wheel is not compatible with 03-04 59mm Inducer. Please DOUBLE check your sizing prior to purchase.
2. Professional install is highly recommended!?Please ask all questions prior to purchase!
3. Highly recommended to get the CHRA VSR balanced after rebuild (is required for warranty purposes)!
