05-07 Ford 6.0L Powerstroke Turbo Billet Compressor Wheel + Rebuild Kit

Description:

Billet Compressor Wheel + Rebuild Kit for 05-07 Ford 6.0L Powerstroke Diesel Stock Turbo Only

Application:

Stock turbo parts Fitment – No modifications required.

2005-2007 Ford 6.0L Powerstroke Stock Size Turbo ONLY

Item Details:

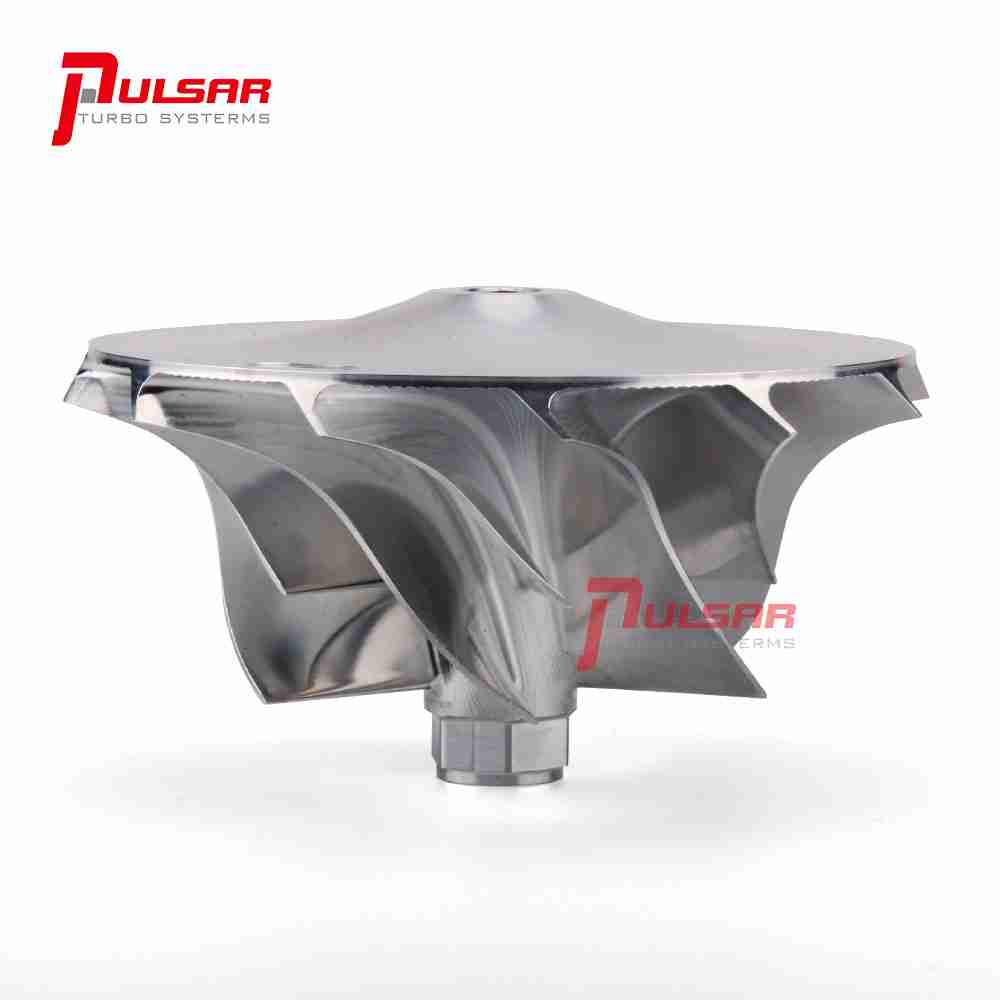

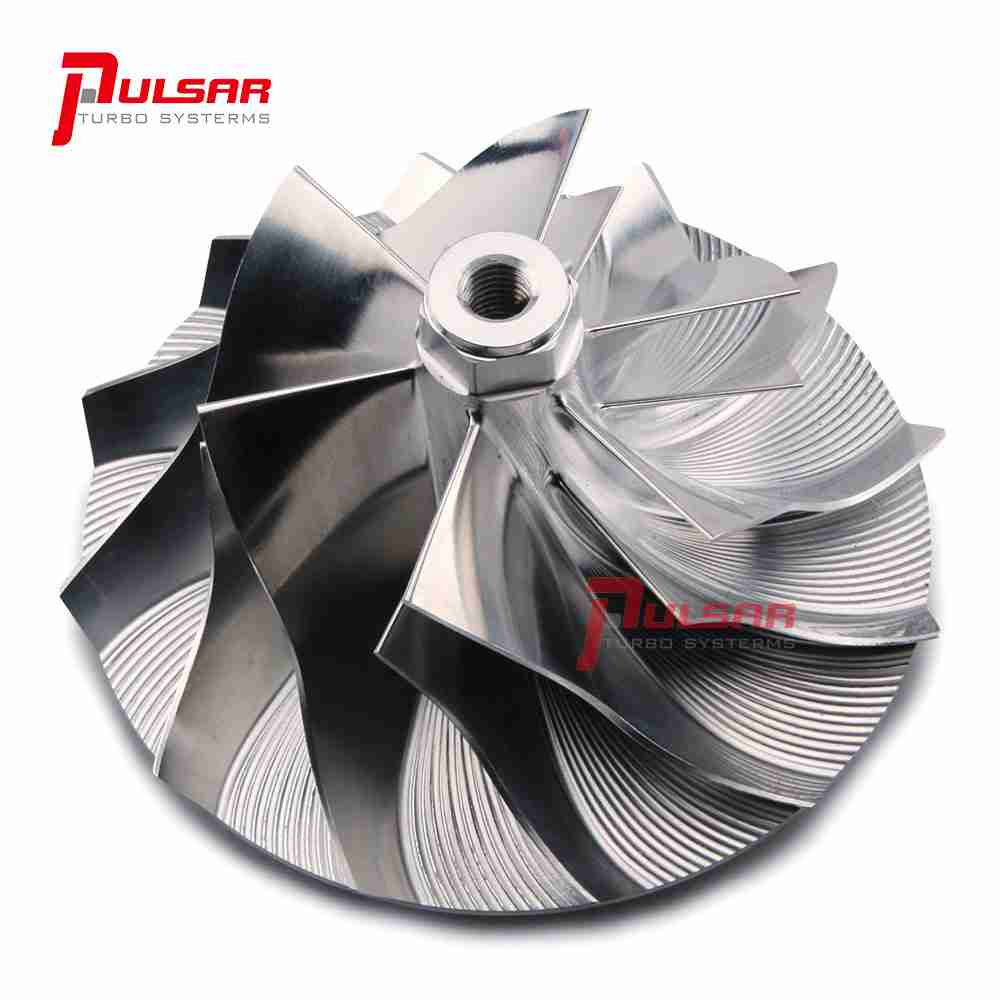

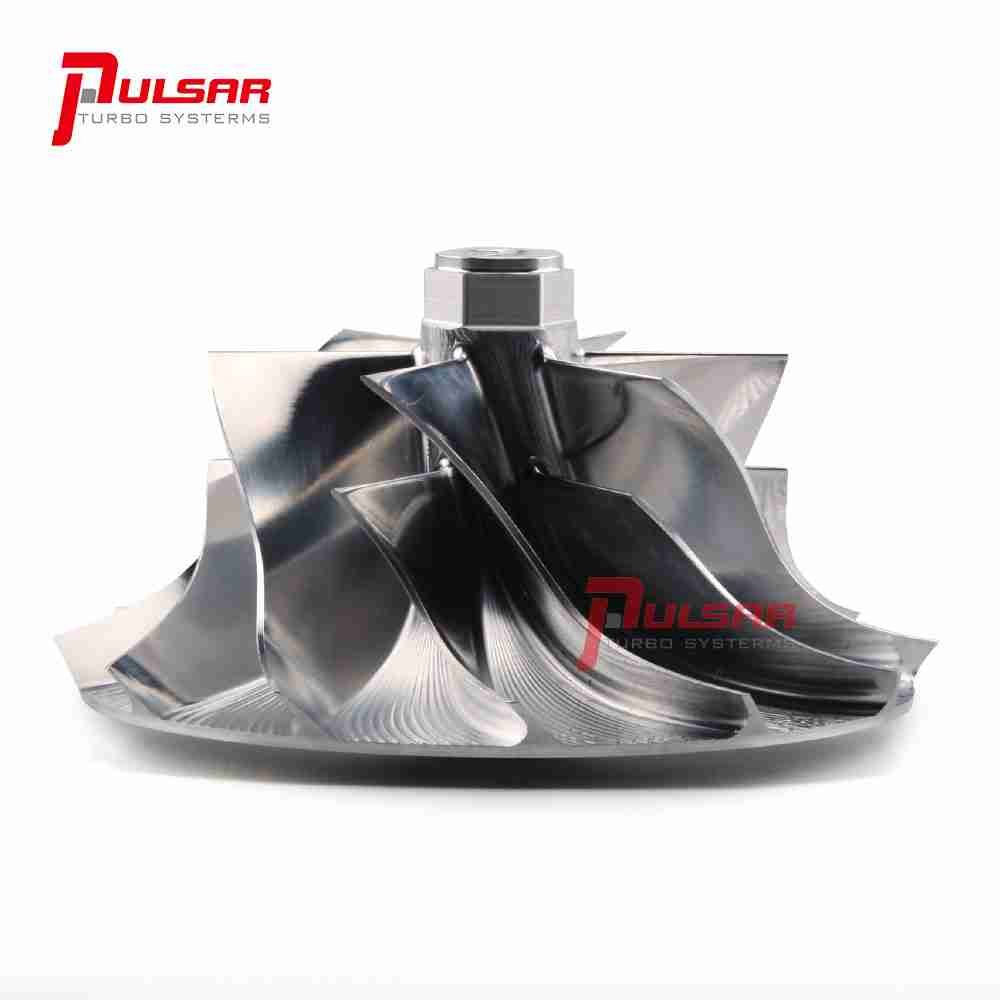

Billet compressor Wheel Inducer: 56.83mm

Billet compressor Wheel Exducer/Tapered Tip Exducer: 82.04mm/87.33mm

Billet compressor Wheel Blade Height: 33.81mm

Billet compressor Wheel Bore: Threaded-M7x1.0LHT

Billet compressor Wheel Blades: 6+6

Stepped?gap seal ring on the turbine end

Stepped?gap seal ring on the compressor end

Twin hydrodynamic journal bearings

360-degree thrust bearing system

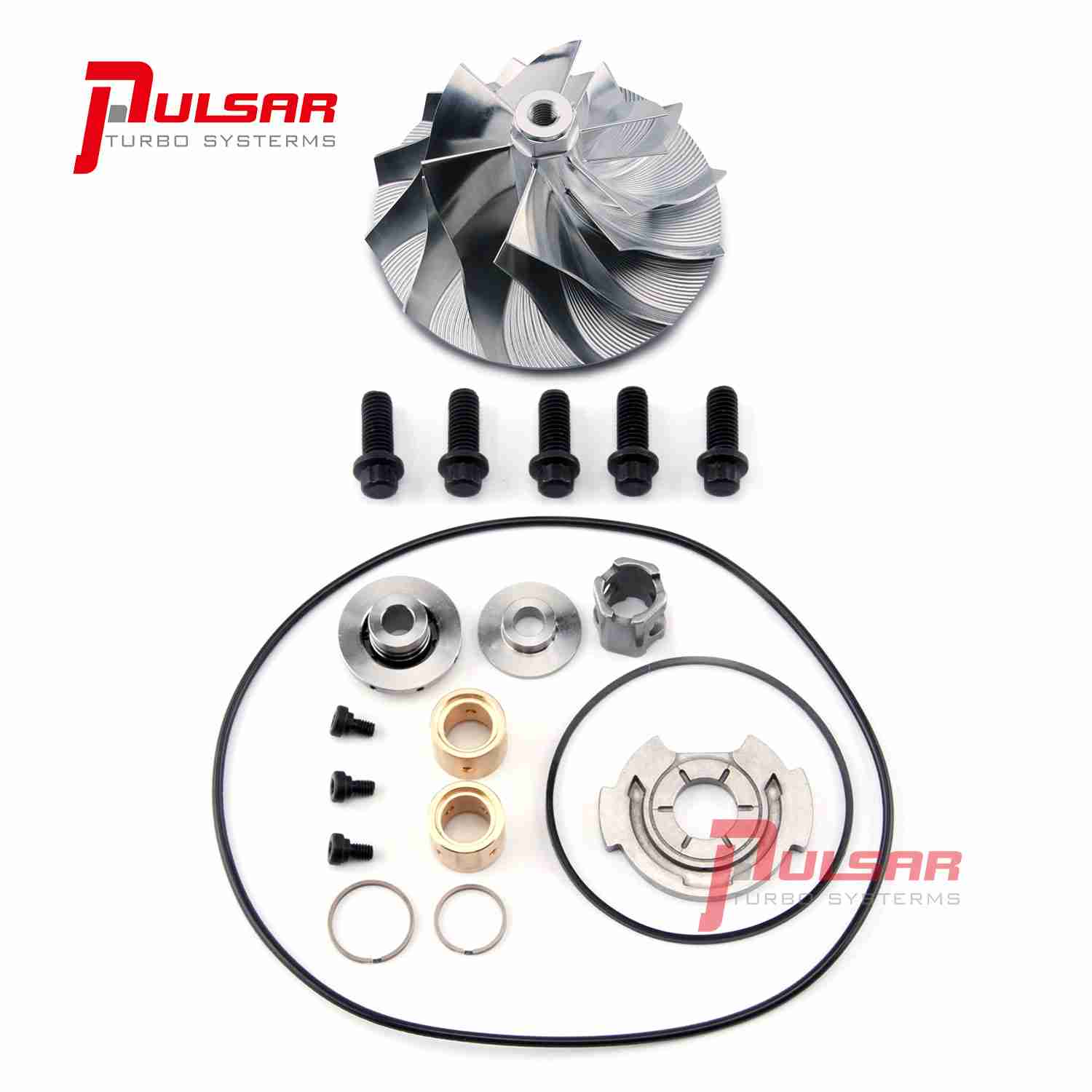

This rebuild kit contains:

1*BILLET COMPRESSOR WHEEL

1*SEAL O-RING

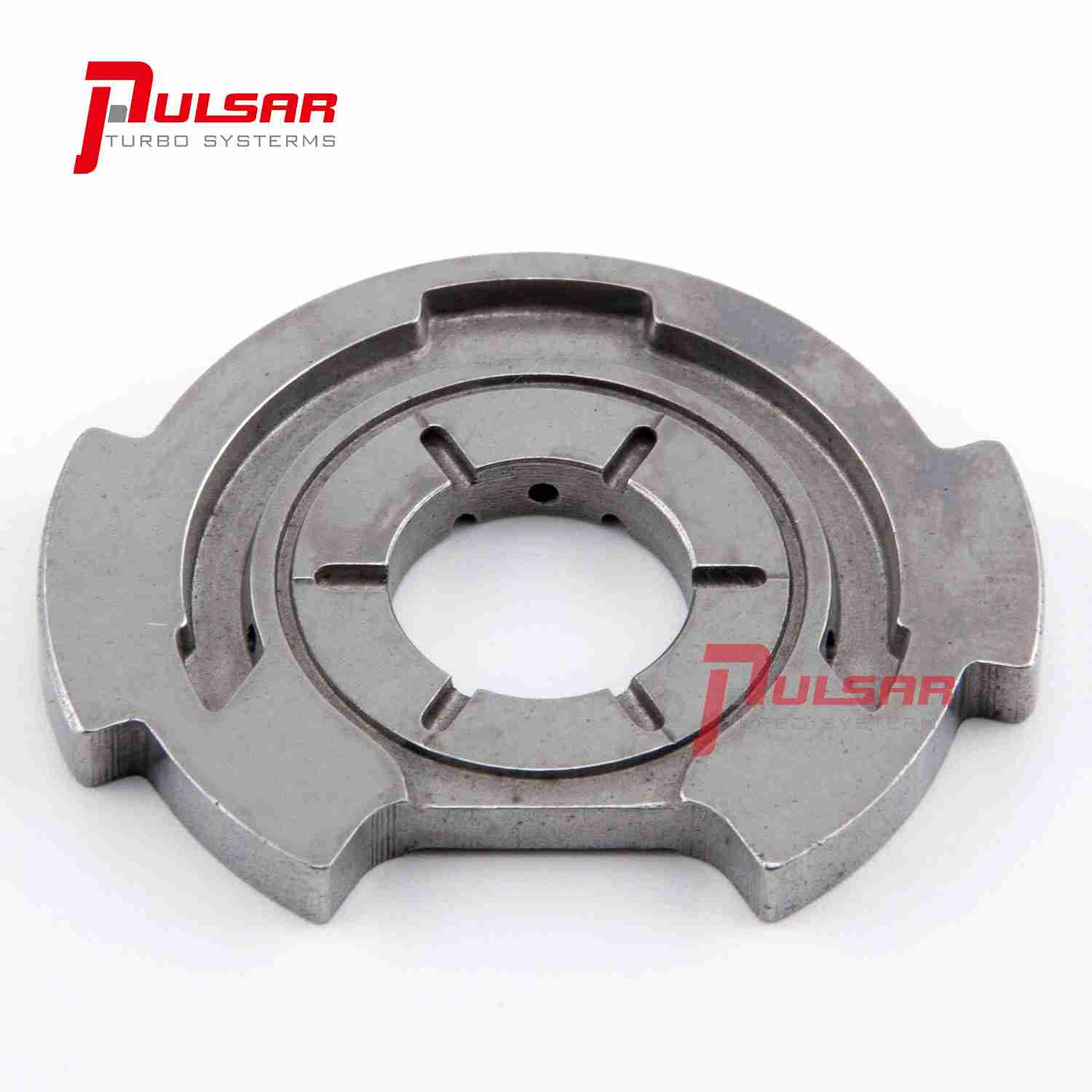

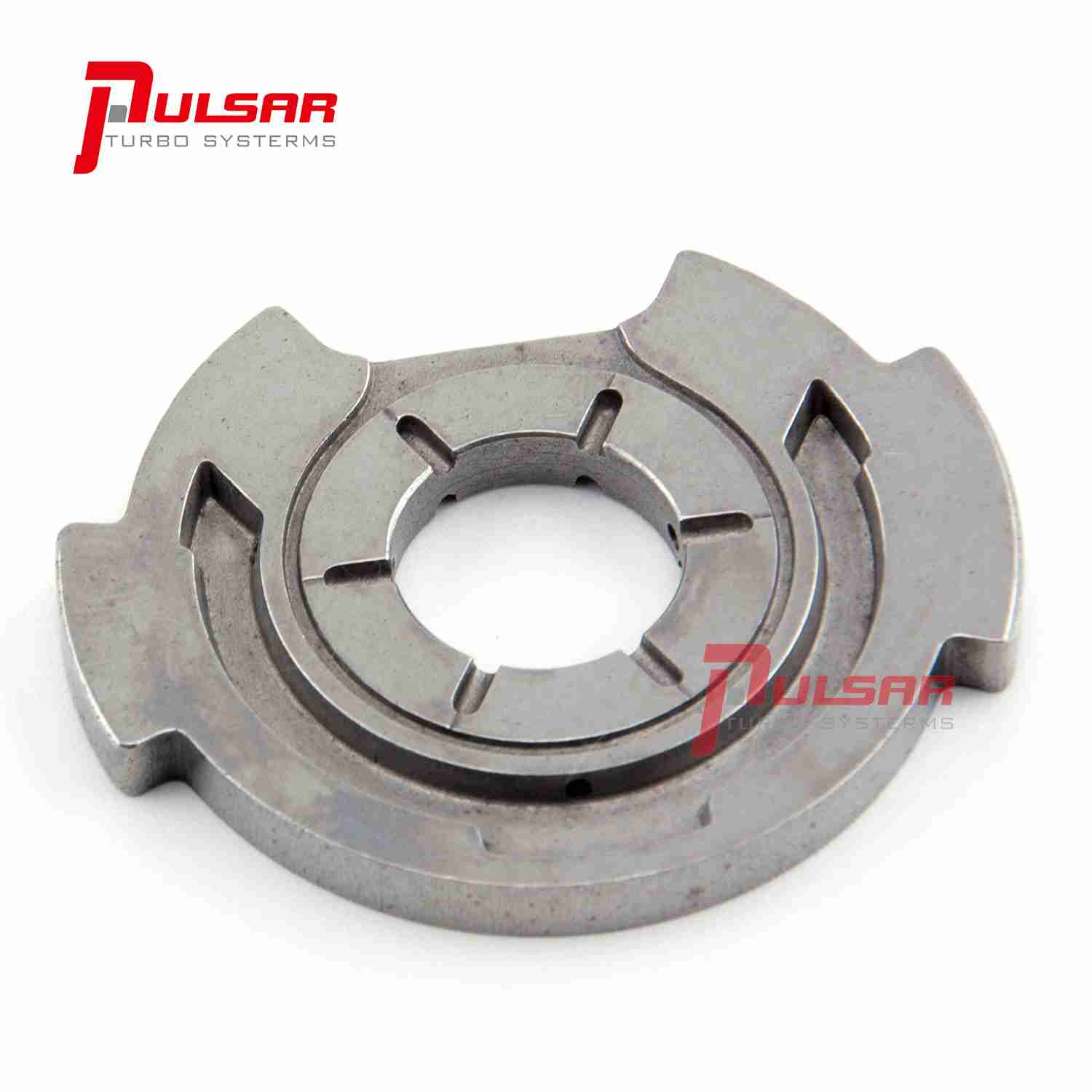

1*360 DEGREE THRUST BEARING

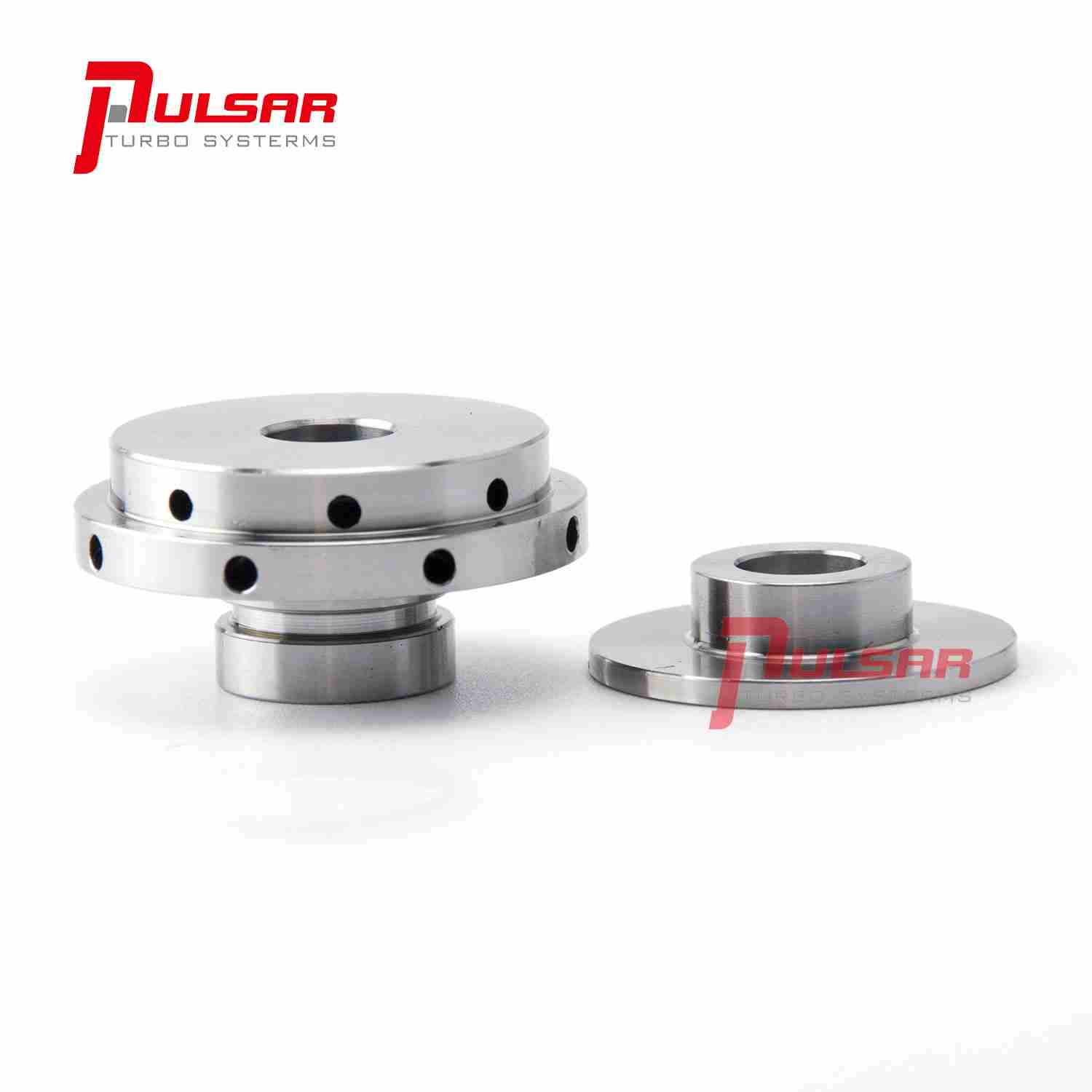

1*THRUST COLLAR

1*THRUST SPACER

3*SEAL PLATE BOLT

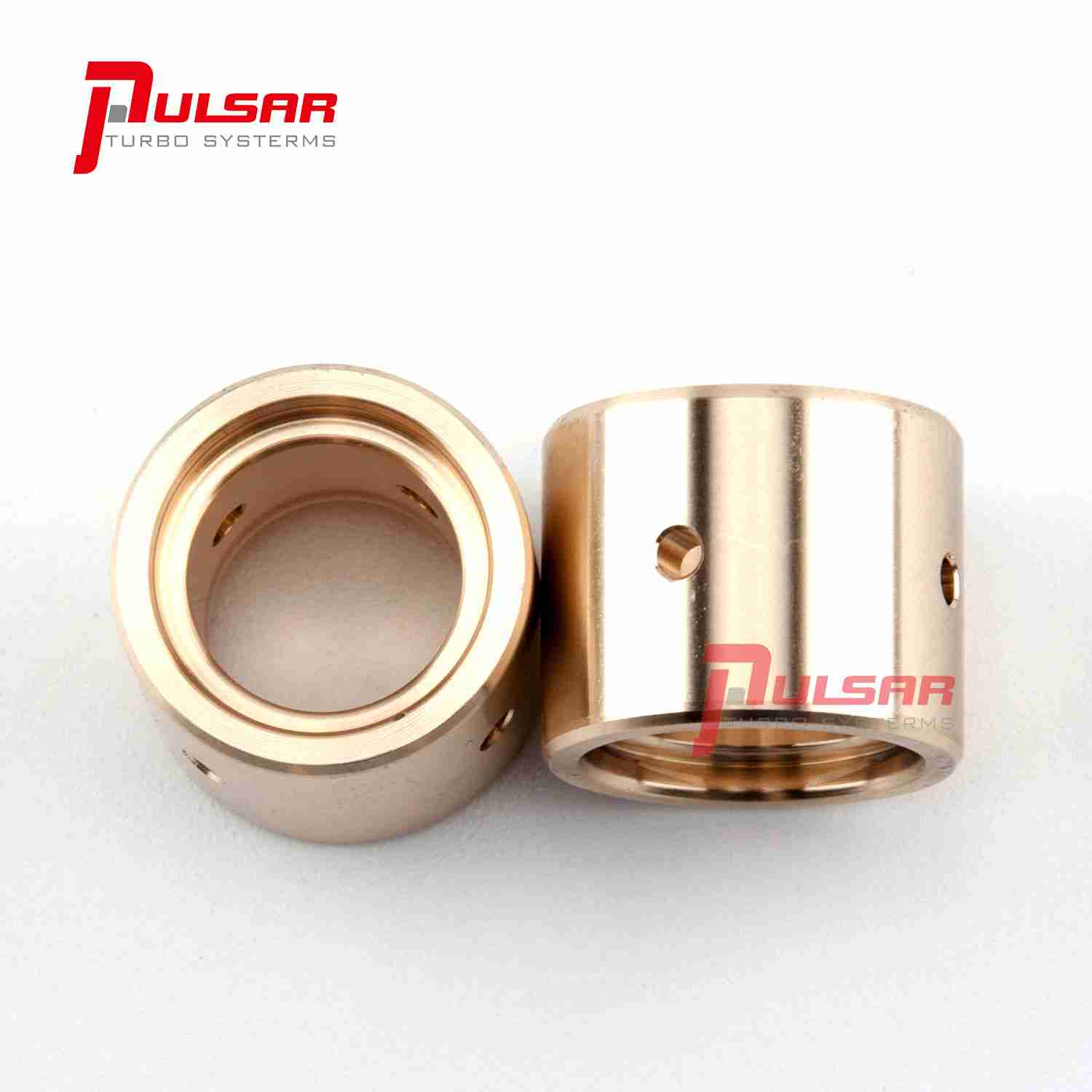

2*JOURNAL BEARING

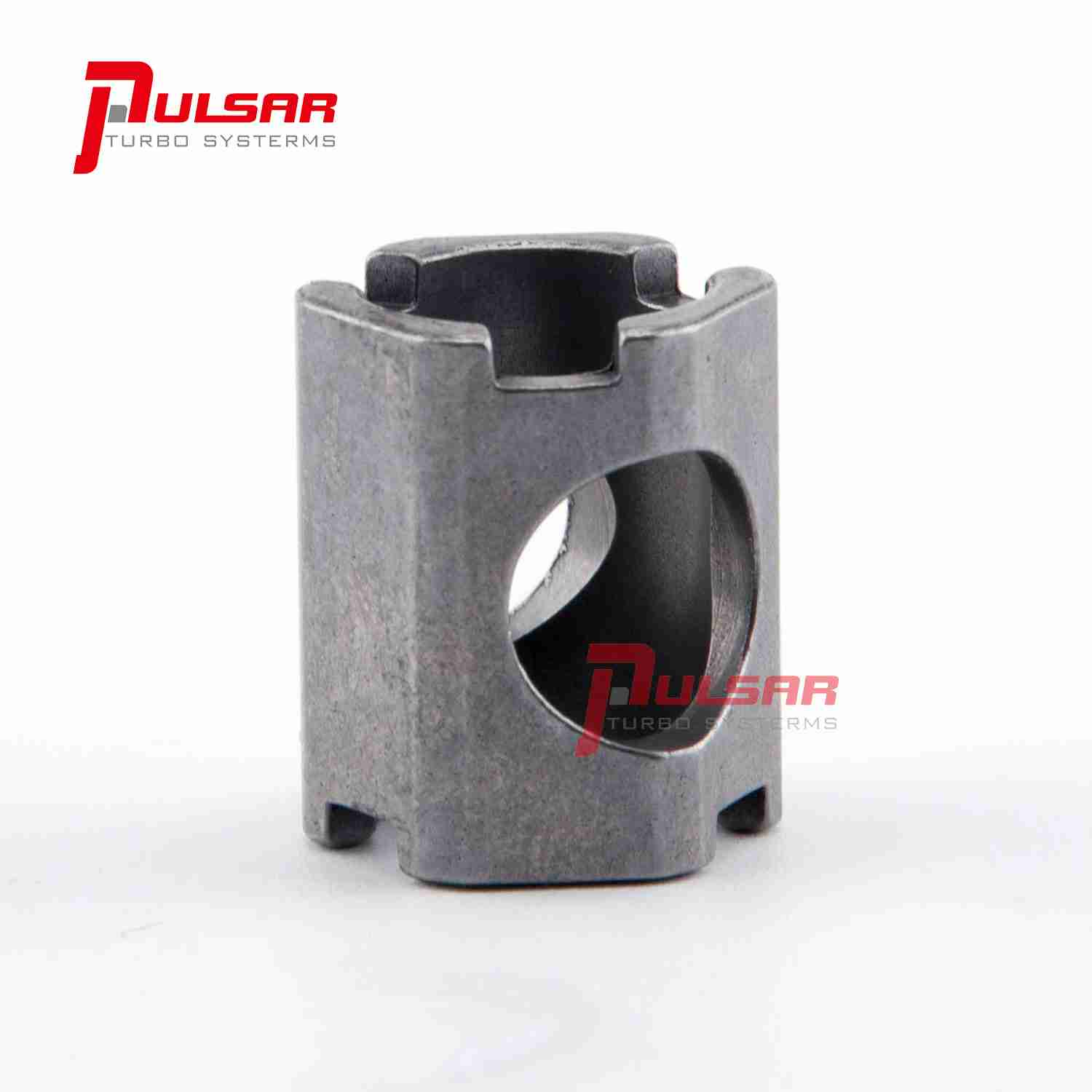

1*BEARING SPACER

1*SMALL SEAL O-RING

5*HOUSING BOLT

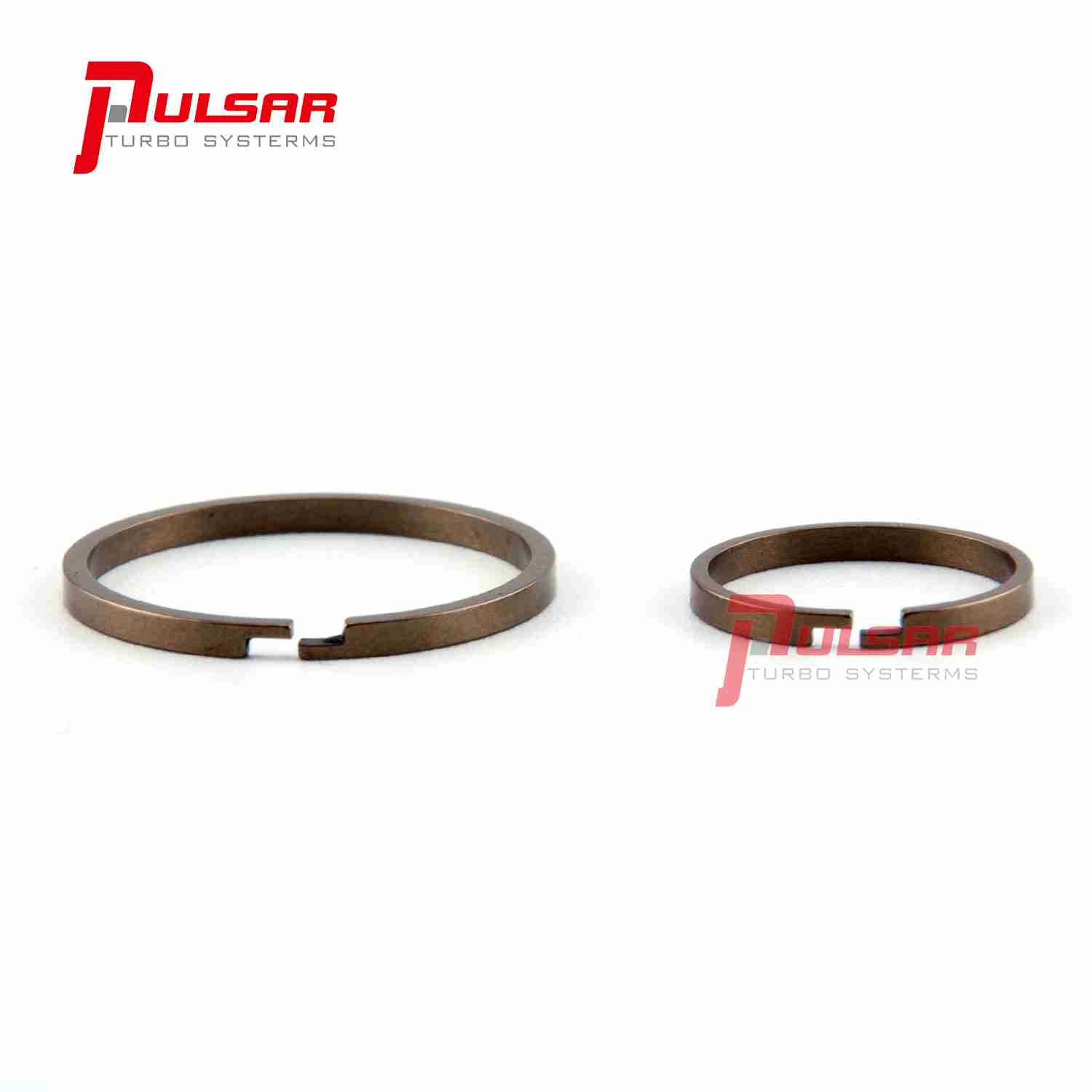

1*COMPRESSOR END SEAL RING (STEPPED GAP)

1*TURBINE END SEAL RING (STEPPED GAP)

-Special Note:

1. This billet compressor wheel is not compatible with 03-04 59mm Inducer. Please check DOUBLE your sizing prior to purchase.
2. Professional install is highly recommended!?Please ask all questions prior to purchase!
3. Highly recommended to get the CHRA VSR balanced after rebuild (is required for warranty purposes)!
