Pulsar 360 Thrust Upgrade / Rebuild Kit — 410SX / 478 (78mm)

Description

360 Copper Thrust Upgrade for Repair Rebuild Kit for 410SX 478 78mm Billet Compressor Wheel Turbo for CAT 3406E C15 Engine

Application:

Stock turbo parts Fitment – No modifications required.

Fit for 410SX 478 78mm Billet Compressor Wheel Turbo for CAT 3406E C15 Engine

Item Details:

Stepped gap seal ring on the 96mm turbine end (2 turbine side piston rings)

Stepped gap seal ring on the compressor end

Twin hydrodynamic journal bearings

360 Degree Thrust Bearing CNC machined from COOPER BAR

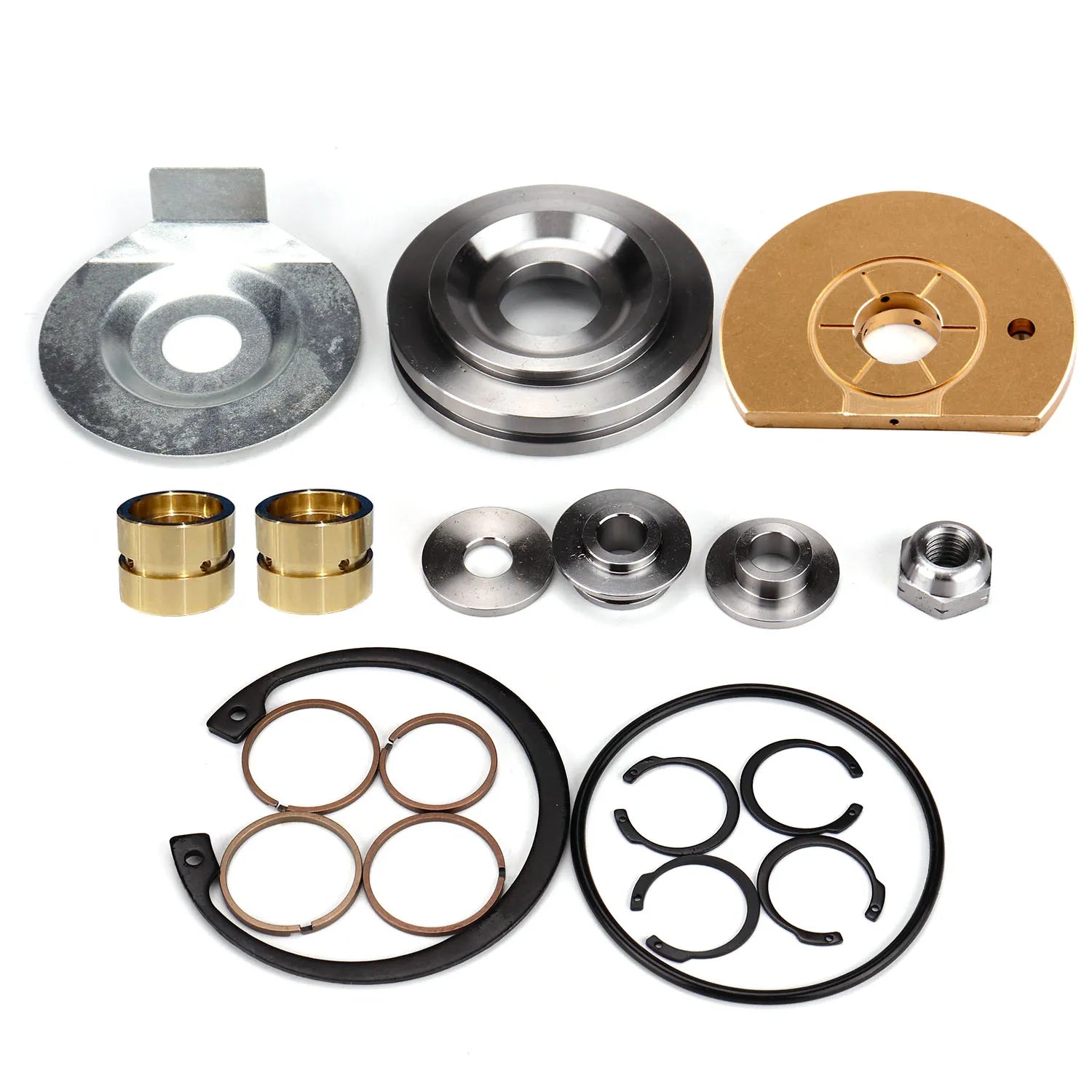

This rebuild kit contains:

Oil Baffle*1

Seal Plate*1

Thrust Collar*1

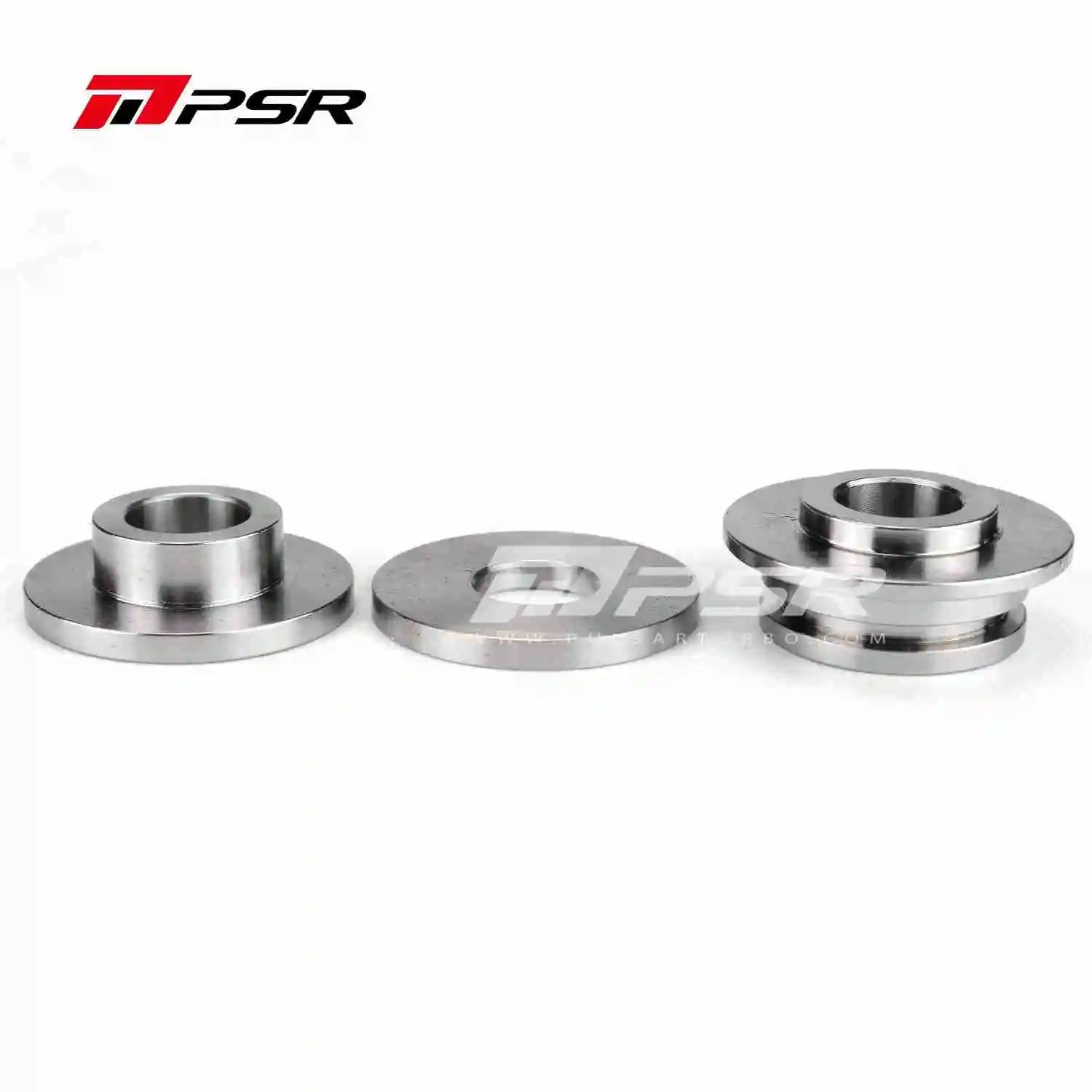

2 Piece Thrust Spacer Set*1

Seal O-Ring*1

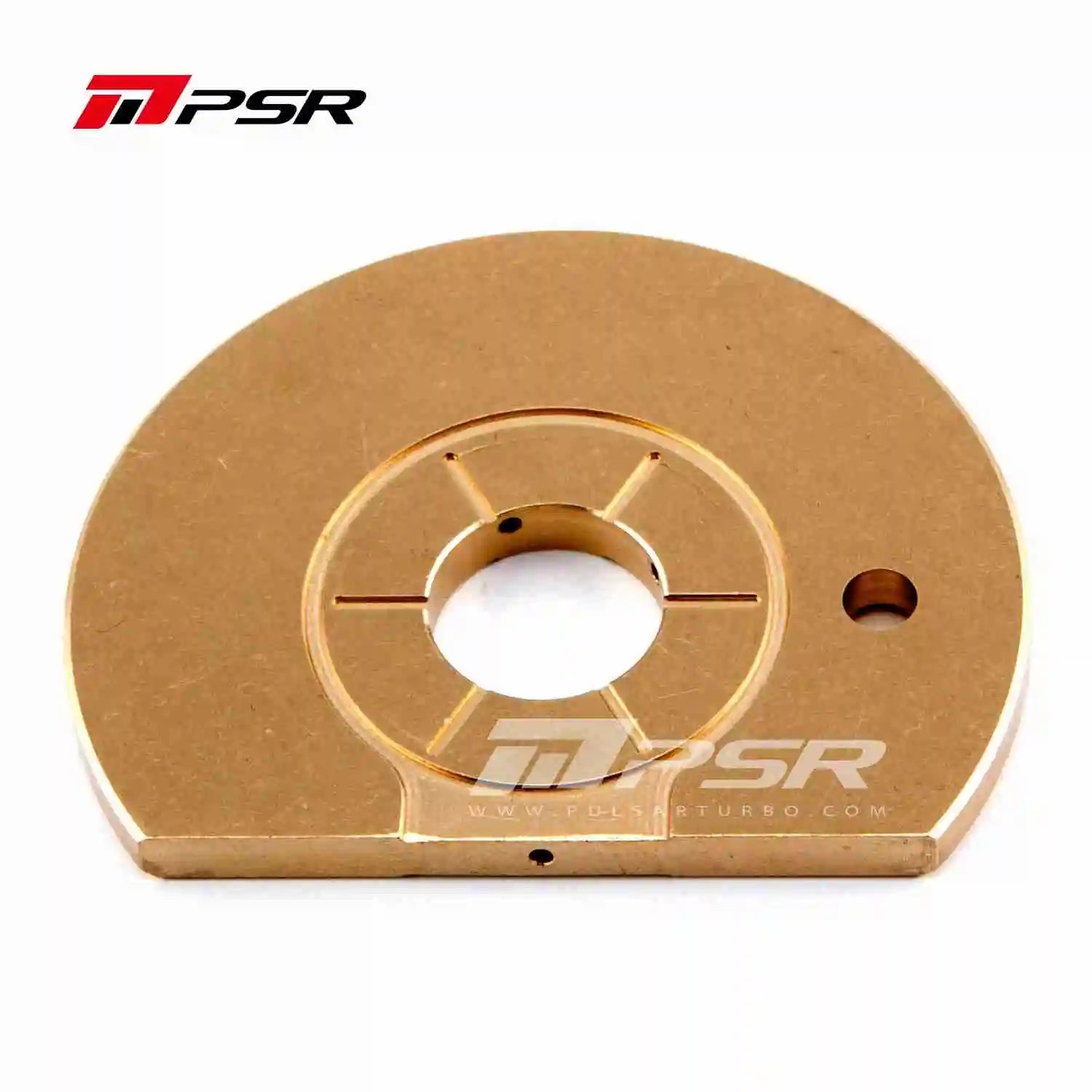

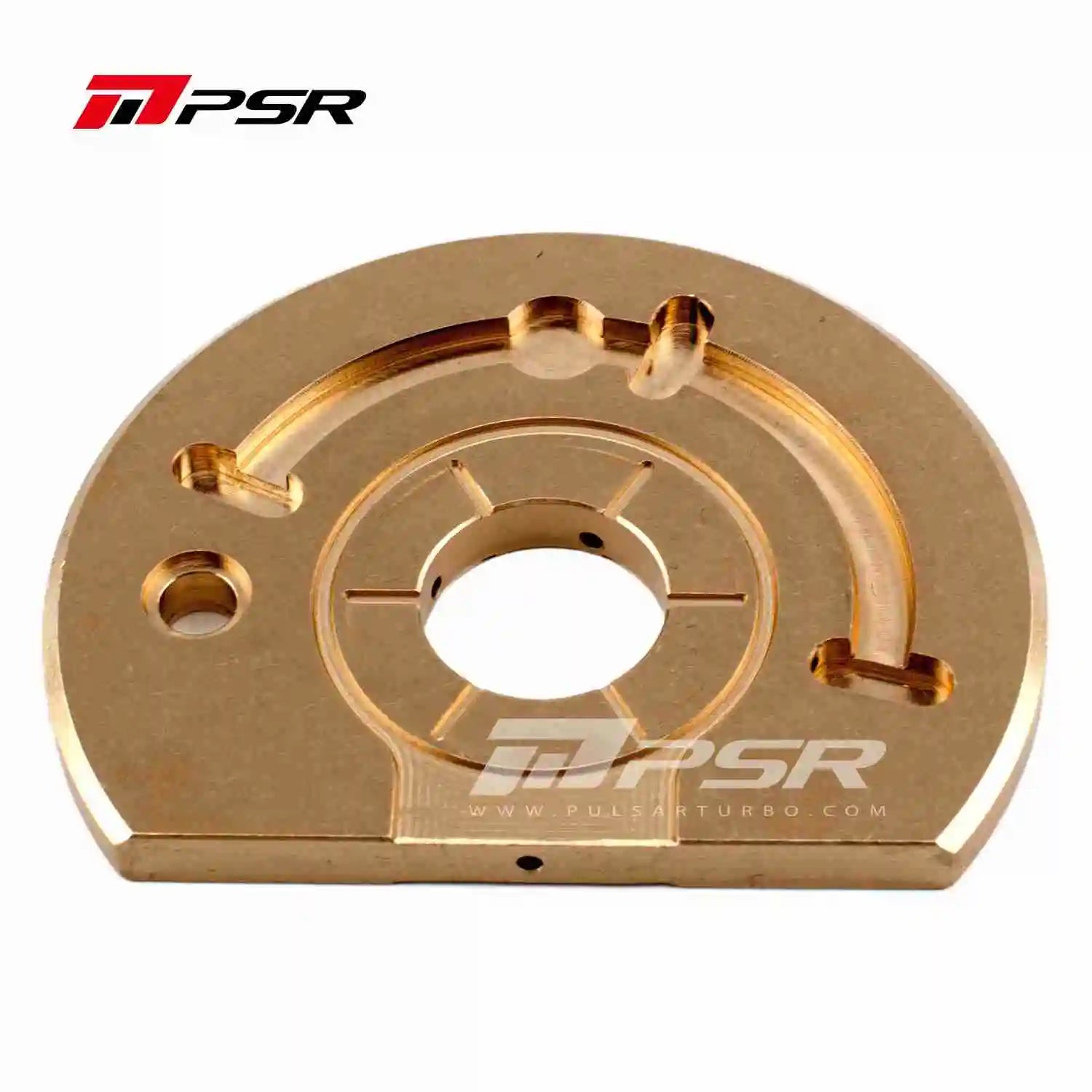

360-degree COPPER Thrust Bearing*1

Journal Bearing*2

Compressor wheel Locknut*1

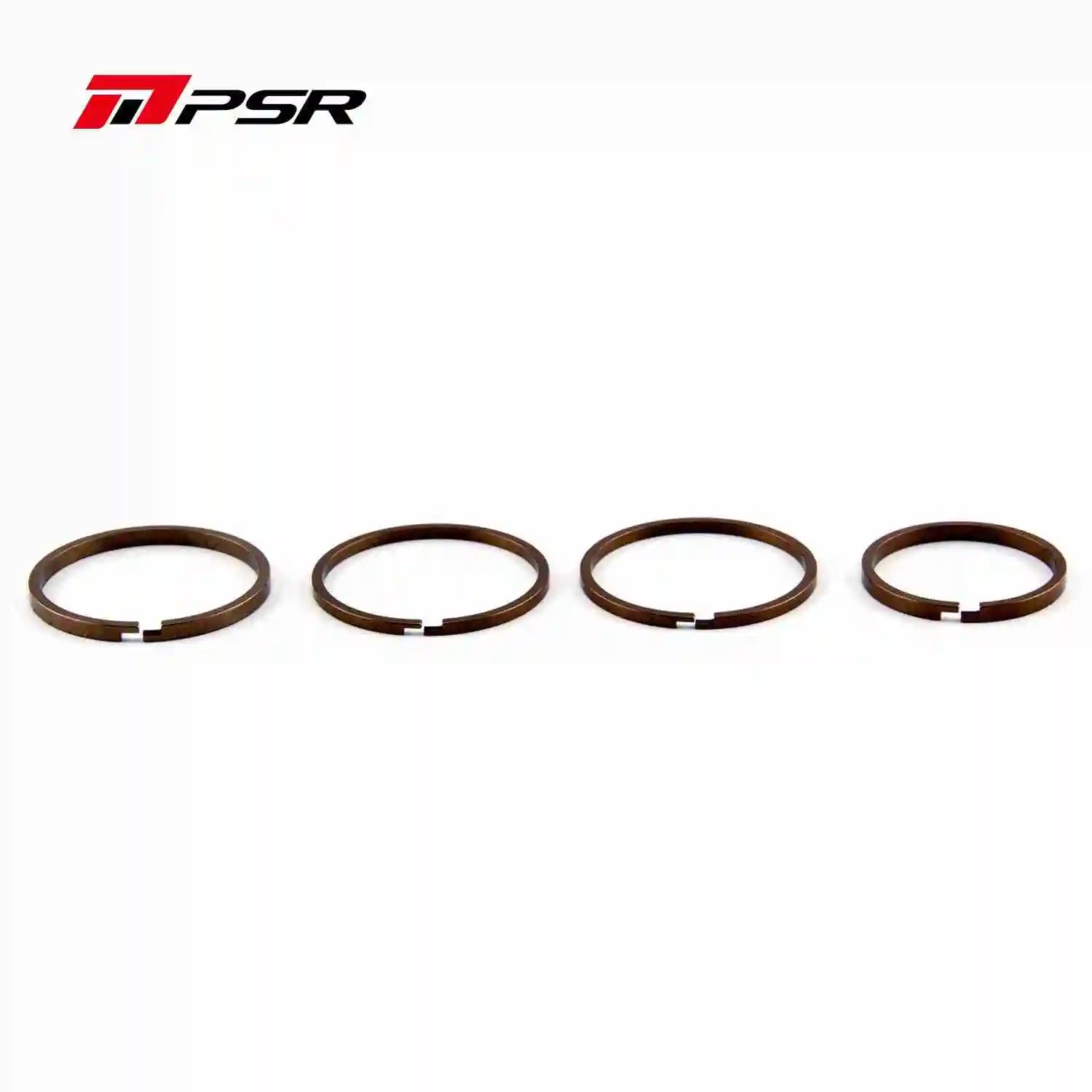

96mm Turbine end seal ring*2

compressor end seal ring*1

Retaining Ring*1

Journal bearing Retaining Ring*4

Special Note:

1. Please DOUBLE check your sizing prior to purchase!

2. Professional install is highly recommended! Please ask all questions prior to purchase!

3. Highly recommended to get the CHRA VSR balanced after rebuild (is required for warranty purposes)!
