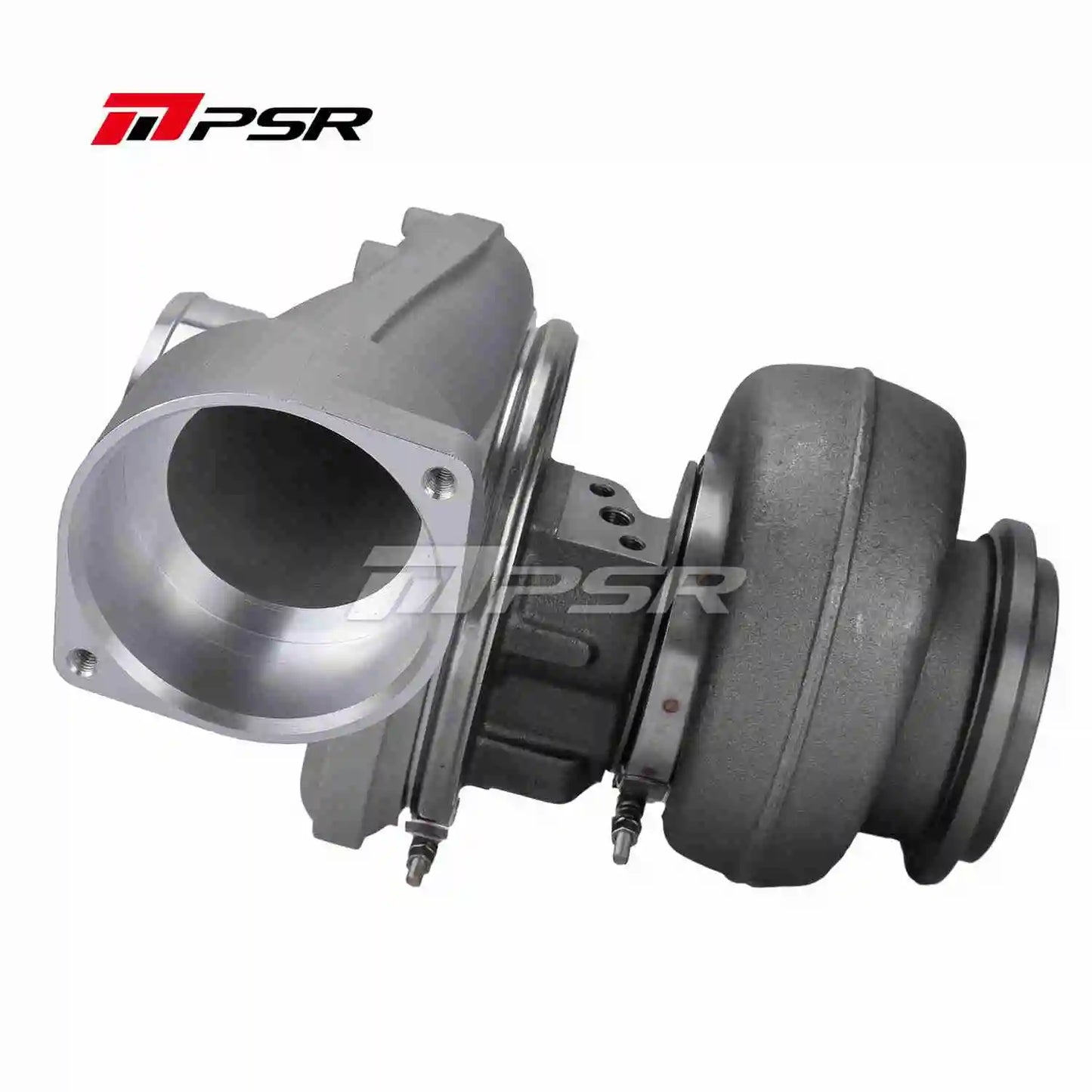

PULSAR NEXT GEN 410SX 478G 78mm Billet Compressor Wheel Turbo with 9 Blade Turbine Wheel for CAT 3406E C15 Engine

• G series design 9 Blade Inconel 713 turbine wheel for improved gas flow ability and reduced turbo lag
• 78mm forged milled compressor wheel vs. stock cast wheel for increased component strength, life cycle, and better aerodynamics
• Horsepower rate: 650-1300
• Oil feed/drain port: 1/4NPT / STD T6
• 360° thrust bearing vs. stock 270° thrust bearing enhances durability
• Increased operational range up to 650 horsepower
• Fits most C15, C16 & 3406E applications with T6 flange manifold, doesn’t fit C15 Acert engine
• Manufacturer warranty for 1 year from date of purchase

Description:

Turbine Housing:

1. T6 twin-scroll 1.15 A/R Non-Wastegated housing
2. T6 twin-scroll 1.32 A/R Non-Wastegated housing
3. T6 twin-scroll 1.45 A/R Non-Wastegated housing
4. T6 twin-scroll 1.58 A/R Non-Wastegated housing

Reference part #: 14969880000 Turbo Model: 410SX, 478
