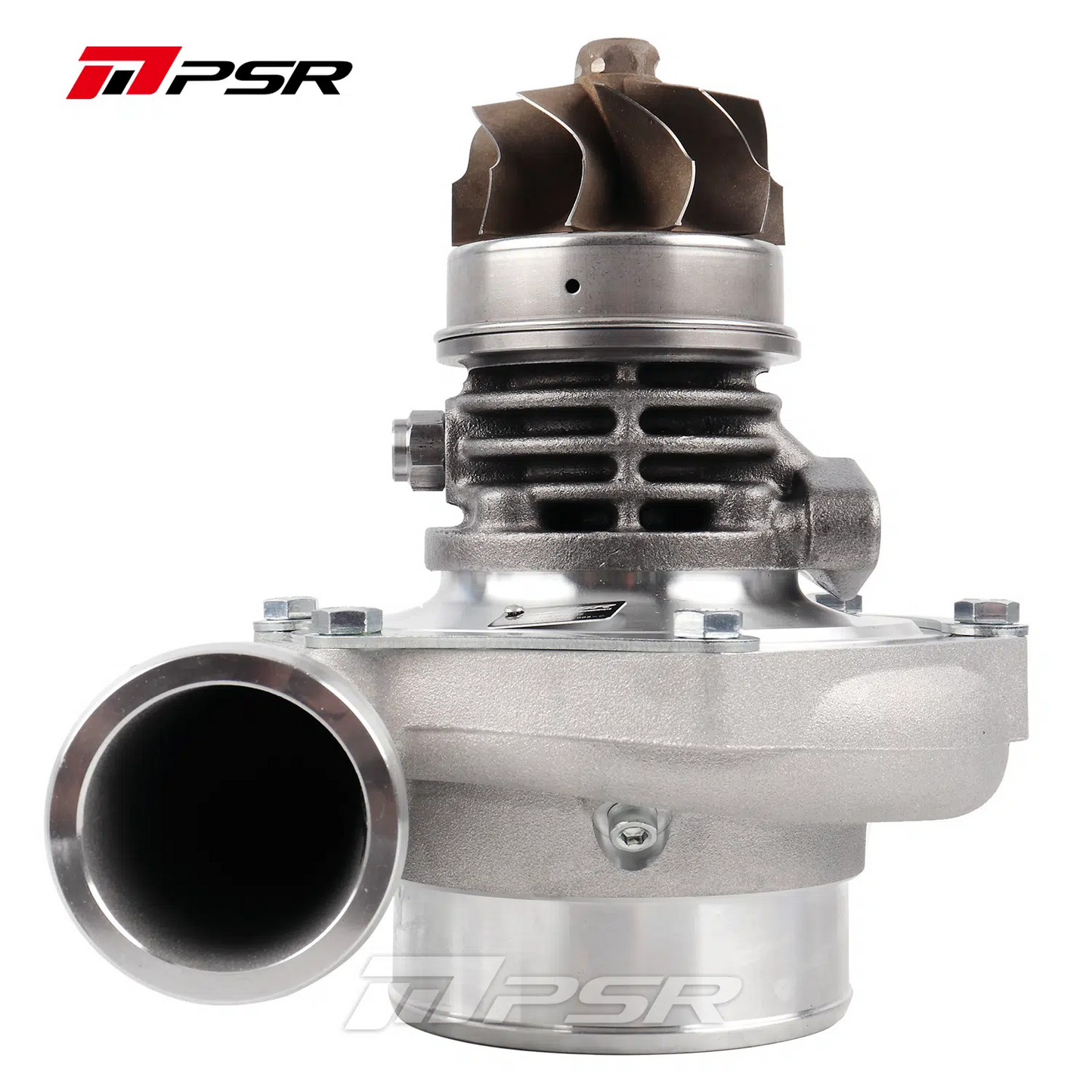

6262E Ball Bearing Supercore UP to 705HP

Ball bearing system provides optimal turbo response & better durability by reducing the shaft-motion

• Billet Compressor Wheel with Slim Nose and Hub for Reduced Weight and Faster Spool-up and Extended Tapered Tip Technology
• Inconel 713c 10 Blade Turbine Wheel
• Max Engine Horsepower: 705

Description:

• Billet Compressor Wheel: 62mm / 82.2mm, 7+7 Blade
• Turbine Wheel: 71 / 62mm, 10 Blade
• Bearing System: Dual Ball Bearing (provides optimal turbo response & better durability by reducing the shaft motion)
• Compressor Cover Inlet/Outlet: 4.0” / 2.5” Hose
• Oil feed fitting: 1/8-27 NPSF (Drawing 1)
• Oil drain: T4 flange (Drawing 2)

Oil Drain Fitting:

10 AN Standard

-10 AN Extended
