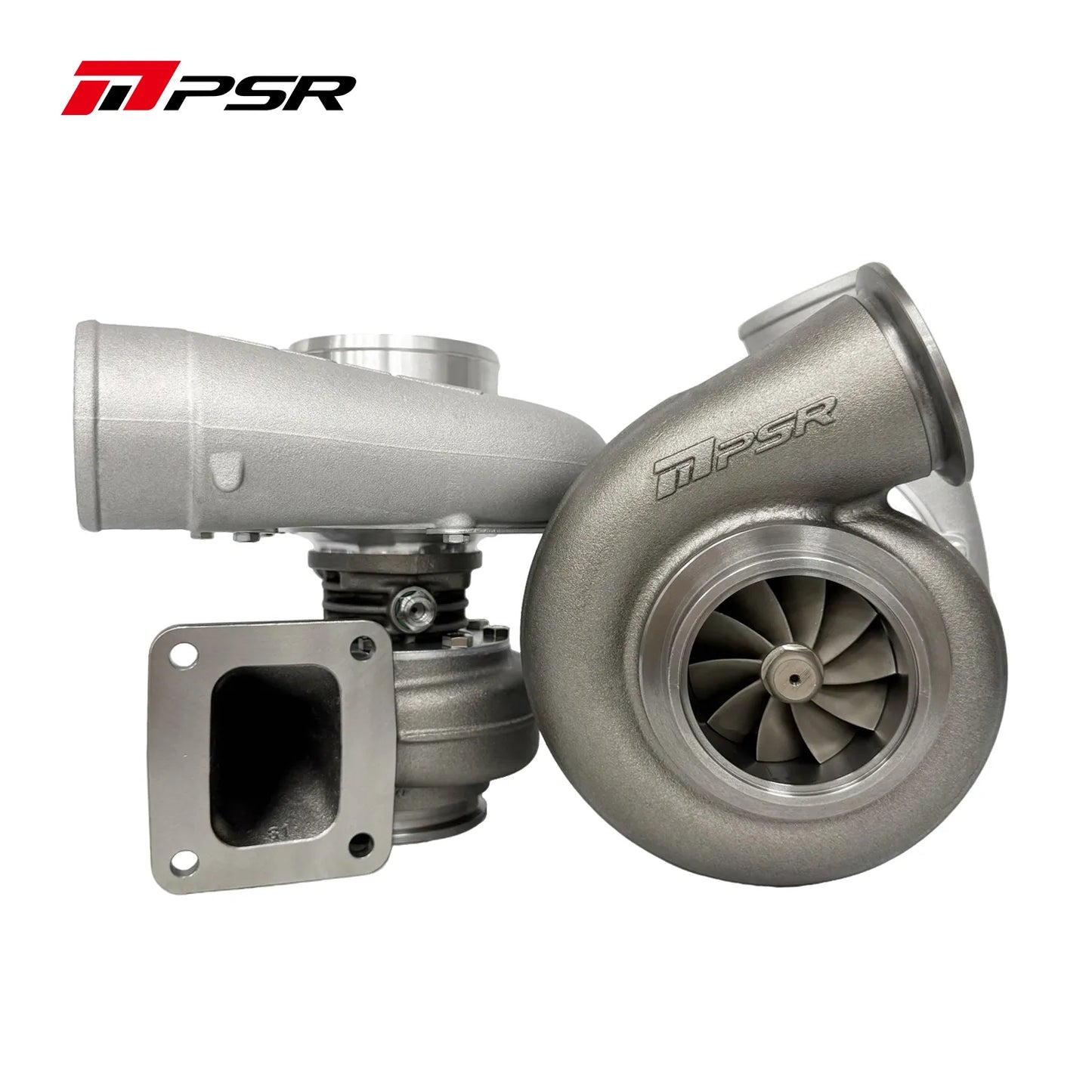

7275E Ball Bearing Turbo UP to 1380HP

• Ball bearing system provides optimal turbo response & better durability by reducing the shaft motion
• Billet Compressor Wheel with Extended Tapered Tip Technology
• Inconel 713c 10 Blade Turbine Wheel
• T4 Open and V-Band In/out are available in the turbine housing option
• V-band Flange kit for the exhaust housing included
• Max Engine Horsepower: 1380

Description

• Billet Compressor Wheel: 72x 98.9mm, 7+7 Blade
• Turbine Wheel: 82×75.13mm, 10 Blade
• Bearing System: Dual Ball Bearing (provides optimal turbo response & better durability by reducing the shaft motion)
• Compressor Cover: 4.0” Hose Inlet/3″ Hose Outlet
• Turbine Housing: T4 Open 0.81A/R(3″ V-band Outlet); Dual V-Band 0.96A/R(3″ V-band Inlet, 3″ V-band Outlet)
• The internal oil feed port is 0.9mm(An oil restrictor is not needed)
• Oil feed fitting: 1/8-27 NPSF (Drawing 1)
• Oil drain: T4 flange (Drawing 2)
• Oil Drain Fitting:

10AN_STD

10AN_Extended
