Description:
Upgrade Rebuild Repair Kit COOPER BAR 360 Thrust Bearing for 94-03 Powerstroke 7.3L Turbo TX38 PTX38
Application:
Stock turbo parts Fitment – No modifications required.
Fit for 94-03 Powerstroke 7.3L Turbo TX38 PTX38
Item Details:
Stepped gap seal ring on the turbine end
Stepped gap seal ring on the compressor end
Twin hydrodynamic journal bearings
360 Degree Thrust Bearing CNC machined from COOPER BAR
-Reference Part #:
447571-0820?740659-0008

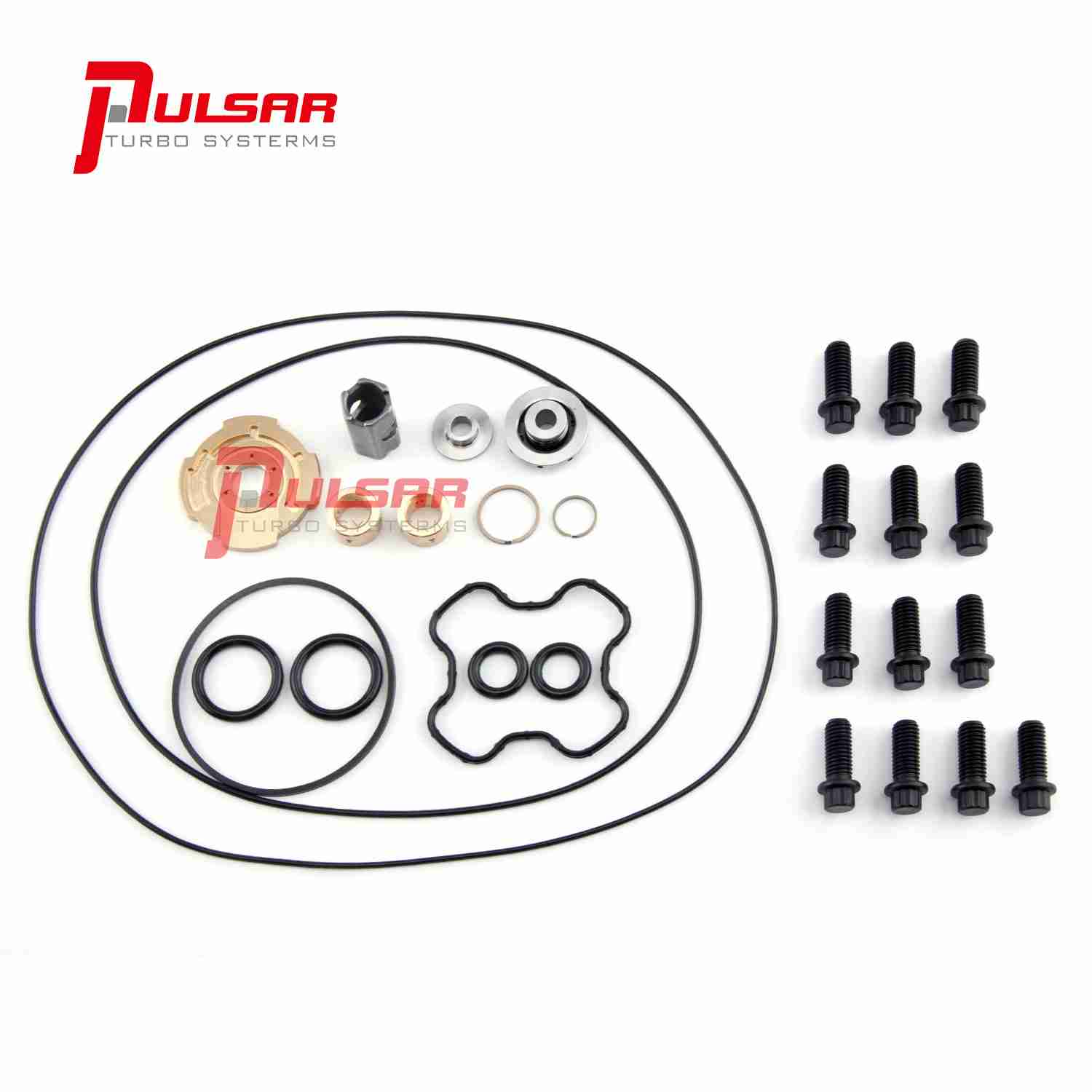

This rebuild kit contains:
1*PTX38 COMPRESSOR HOUSING SEAL O-RING
1*TX38 COMPRESSOR HOUSING SEAL O-RING
1*PTX38 BACK PLATE SEAL O-RING
1*TX38 BACK PLATE SEAL O-RING
2*PEDESTAL SEAL O-RING
2*PEDESTAL SEAL O-RING

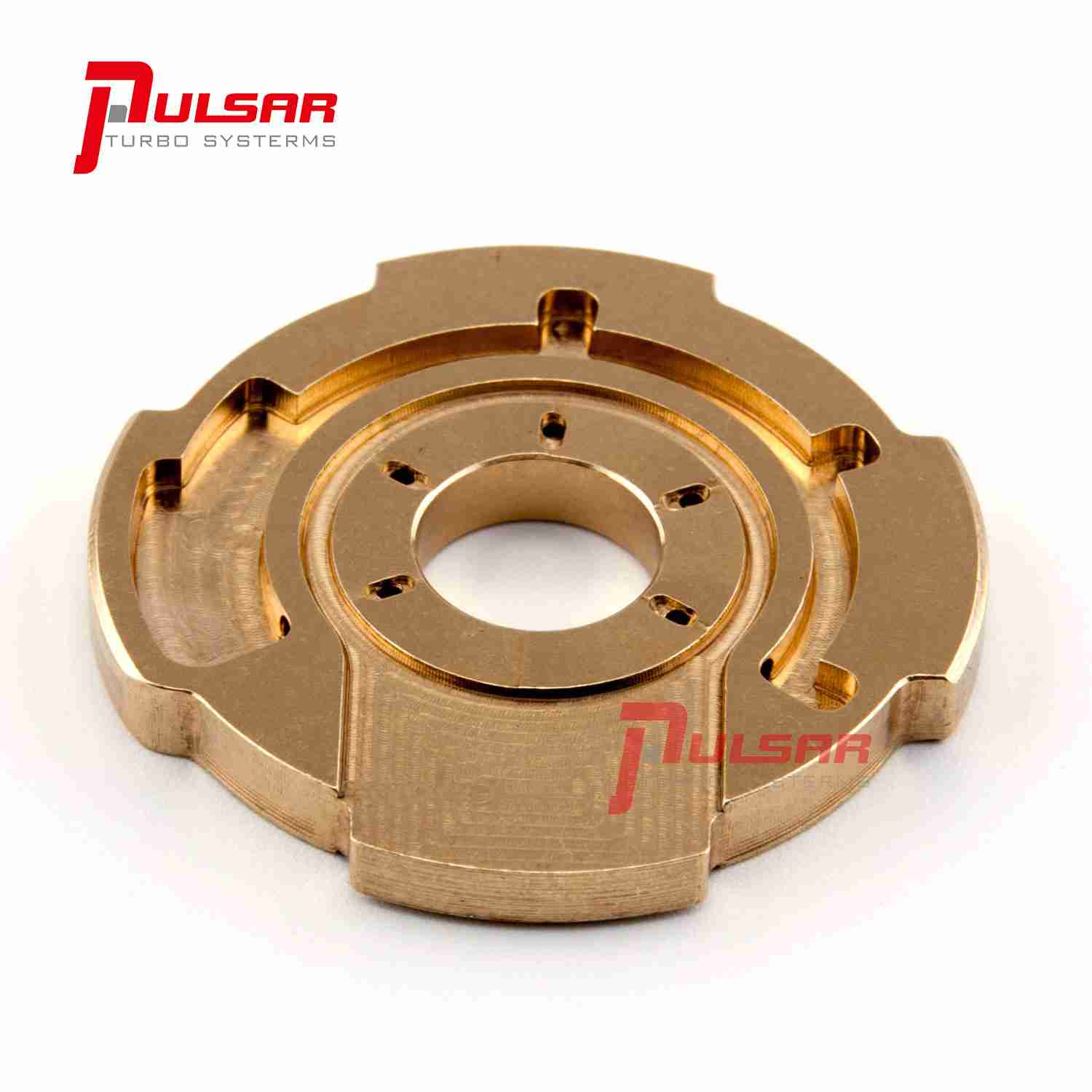

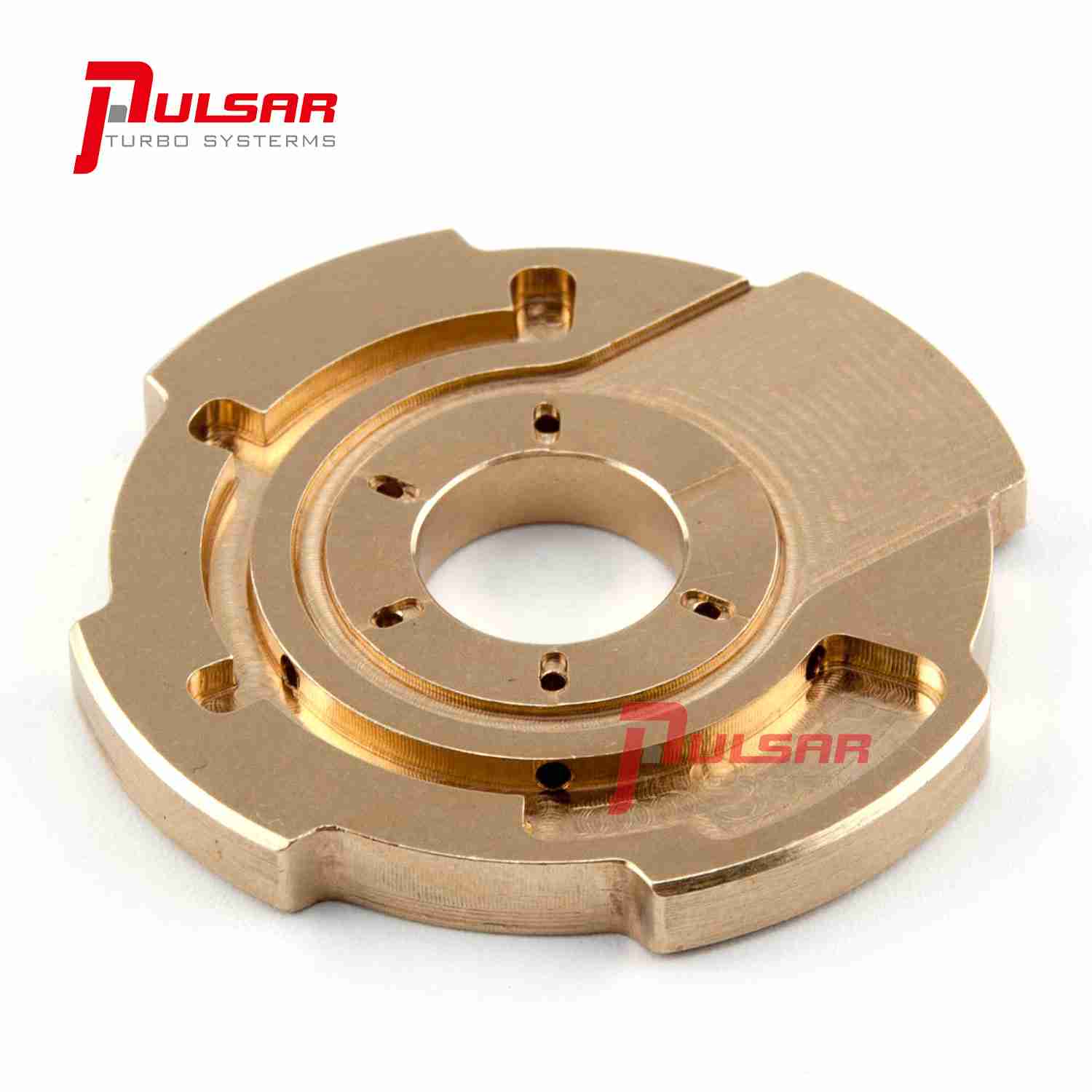

1*360 DEGREE COPPER THRUST BEARING

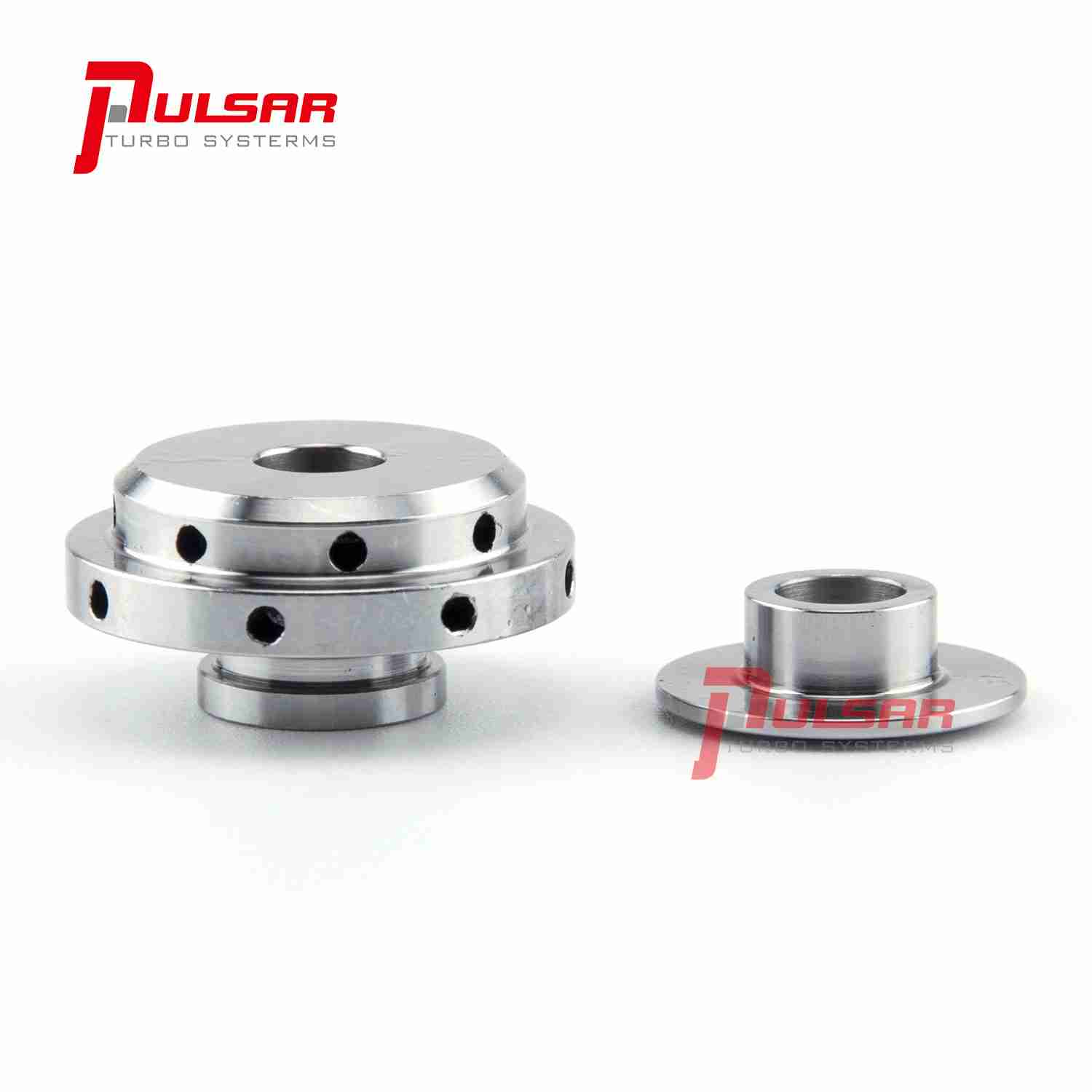

1*THRUST COLLAR
1*THRUST SPACER

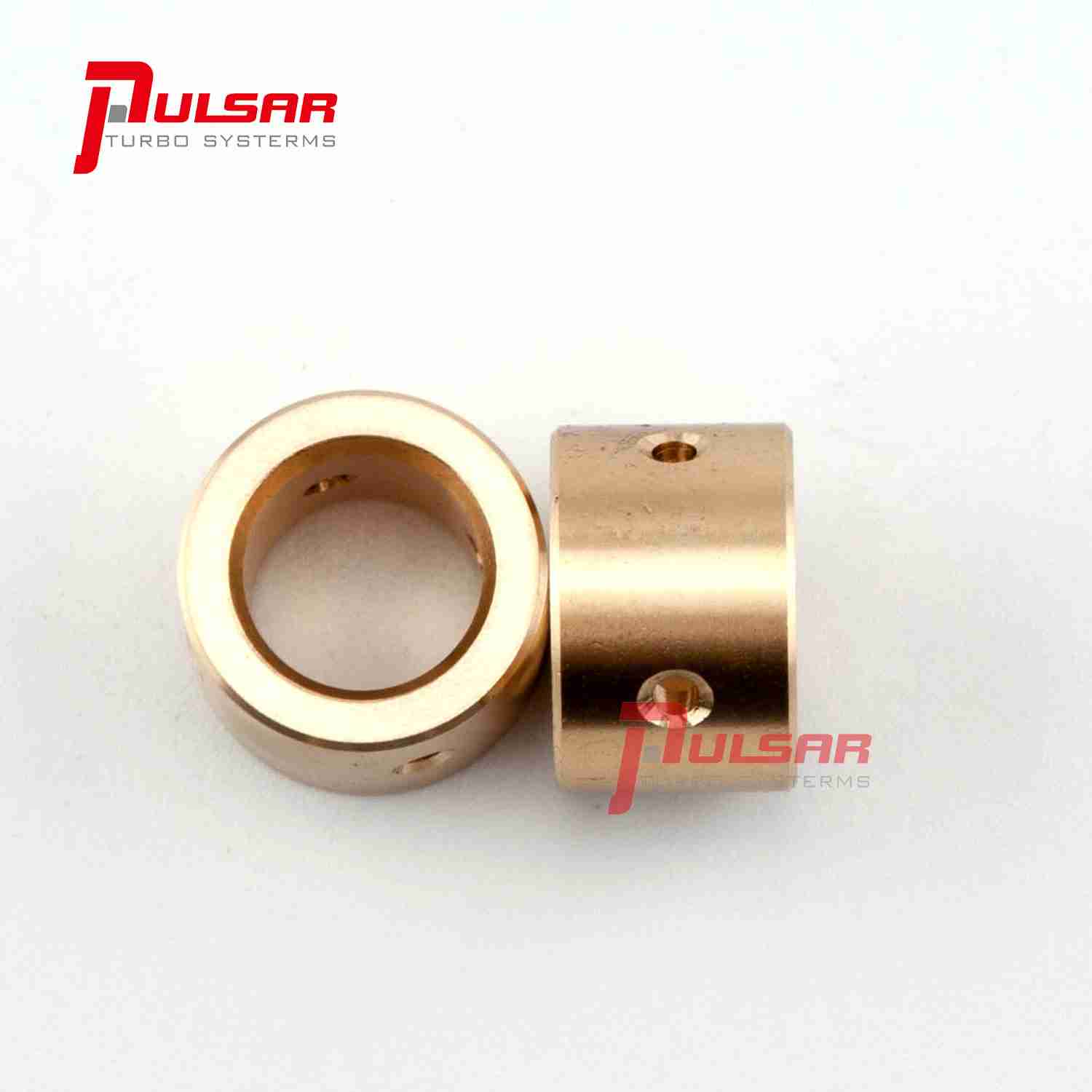

2*JOURNAL BEARING

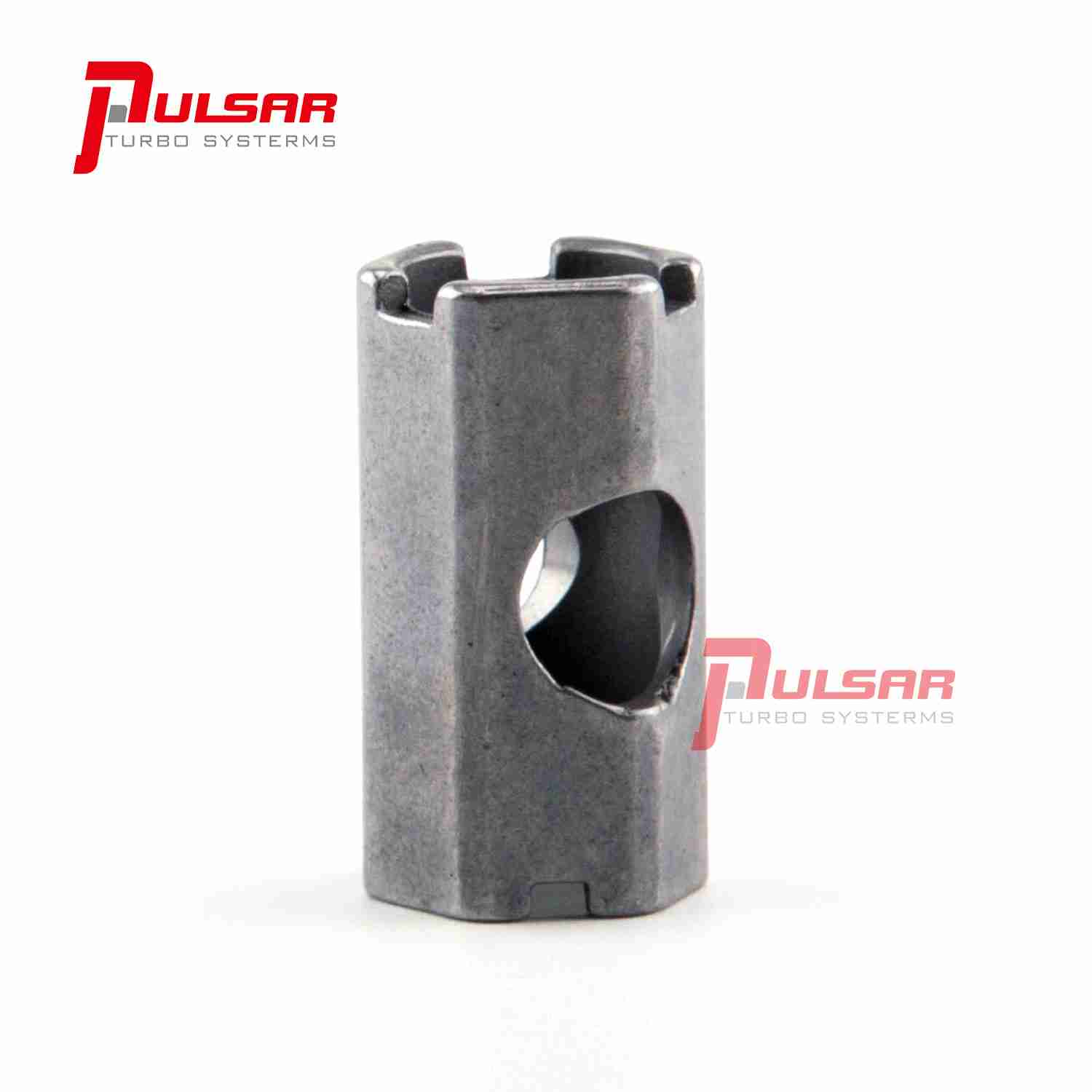

1*BEARING SPACER
13*HOUSING BOLT

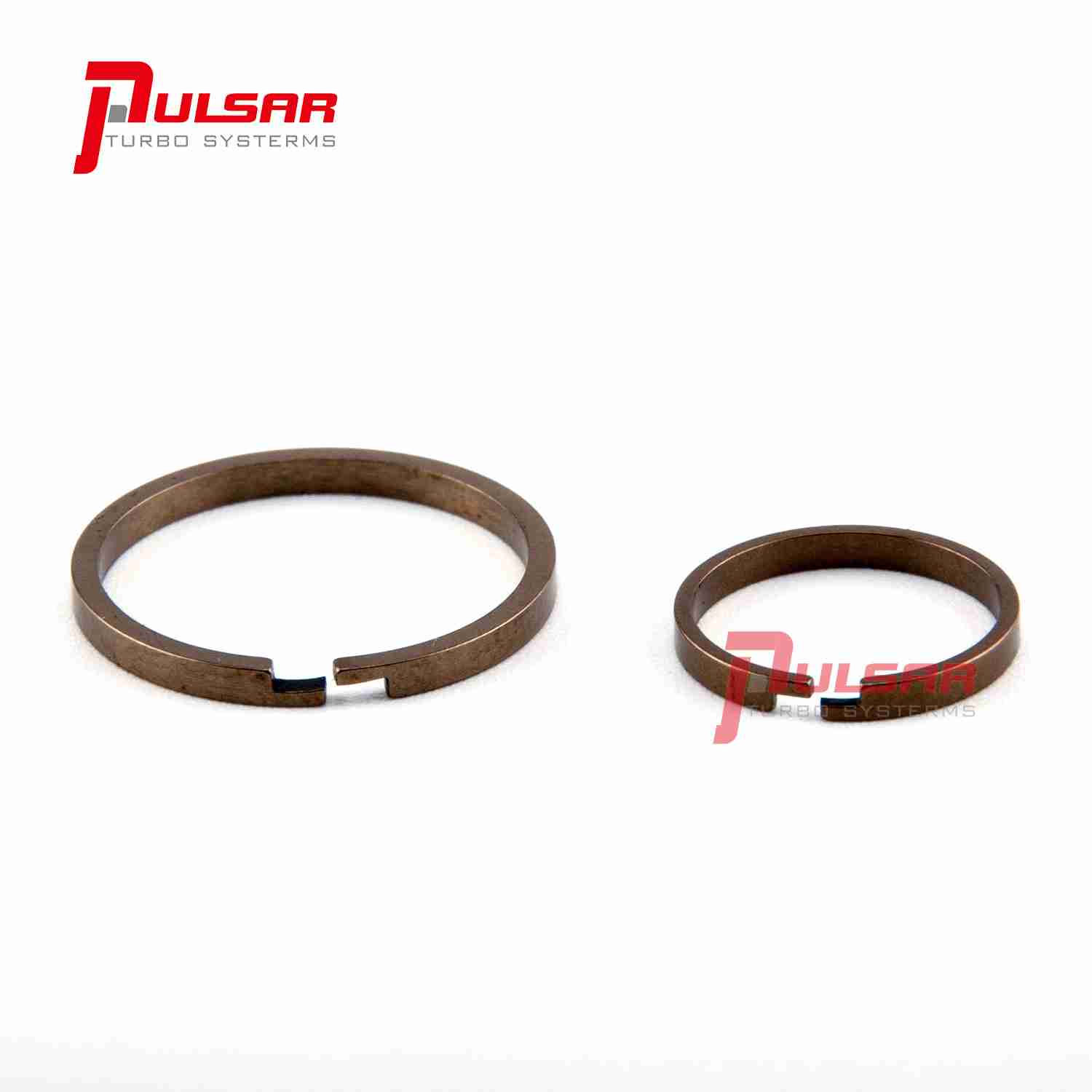

1*COMPRESSOR END SEAL RING (STEPPED GAP)
1*TURBINE END SEAL RING (STEPPED GAP)
Special Note:
1. Please DOUBLE check your sizing prior to purchase!
2. Professional install is highly recommended!?Please ask all questions prior to purchase!
3. Highly recommended to get the CHRA VSR balanced after rebuild (is required for warranty purposes)!
$70.78 - $70.78
