PSR 0606G Dual Ball Bearing Turbocharger HP Rating 2900

• The dual ceramic ball bearing system provides optimal turbo response & better durability by reducing the shaft motion
• 13 Blade PTG-Aero billet compressor wheel 106mm inducer produces up to 2900 hp
• 9 Blade PTG-Aero Inconel 713c turbine wheel with more turbine flow

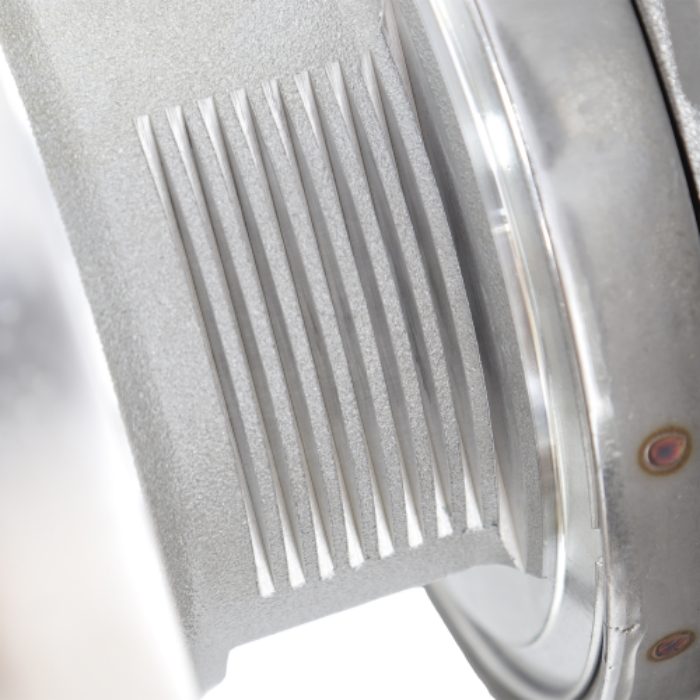

• Fin cooled aluminum center housing, lighter weight
• Anti-Surge ported-shroud compressor inlet, cover integrated with the speed sensor port
• Installation Hardware: 4-inch flange kit for Comp. Outlet, 3.5-inch flange kit for Turb. Inlet, 5-inch flange kit for Turb. The outlet and oil Drain Fitting kits are included by default
• Oil Feed Fitting(-4AN, 1.65mm (0.065-Inch) Orifice) included
• Max Engine HP: 2900

Description

• Compressor Wheel: 106x144mm
• Turbine Wheel: 112x106mm
• Oil Feed: See graph below(OIL INLET), an oil feed flange included: -4AN ∅ 1.65mm (0.065-Inch) Orifice
• Oil Drain: See graph below(OIL OUTLET)

• Compressor Inlet: 6-Inch Hose
• Compressor Outlet:  4-Inch V-Band
• Turbine housing option:

1. 1. Vband inlet (fits 3.5-Inch OD tubing) and Vband outlet (fits 5-Inch OD tubing), 1.24 A/R
