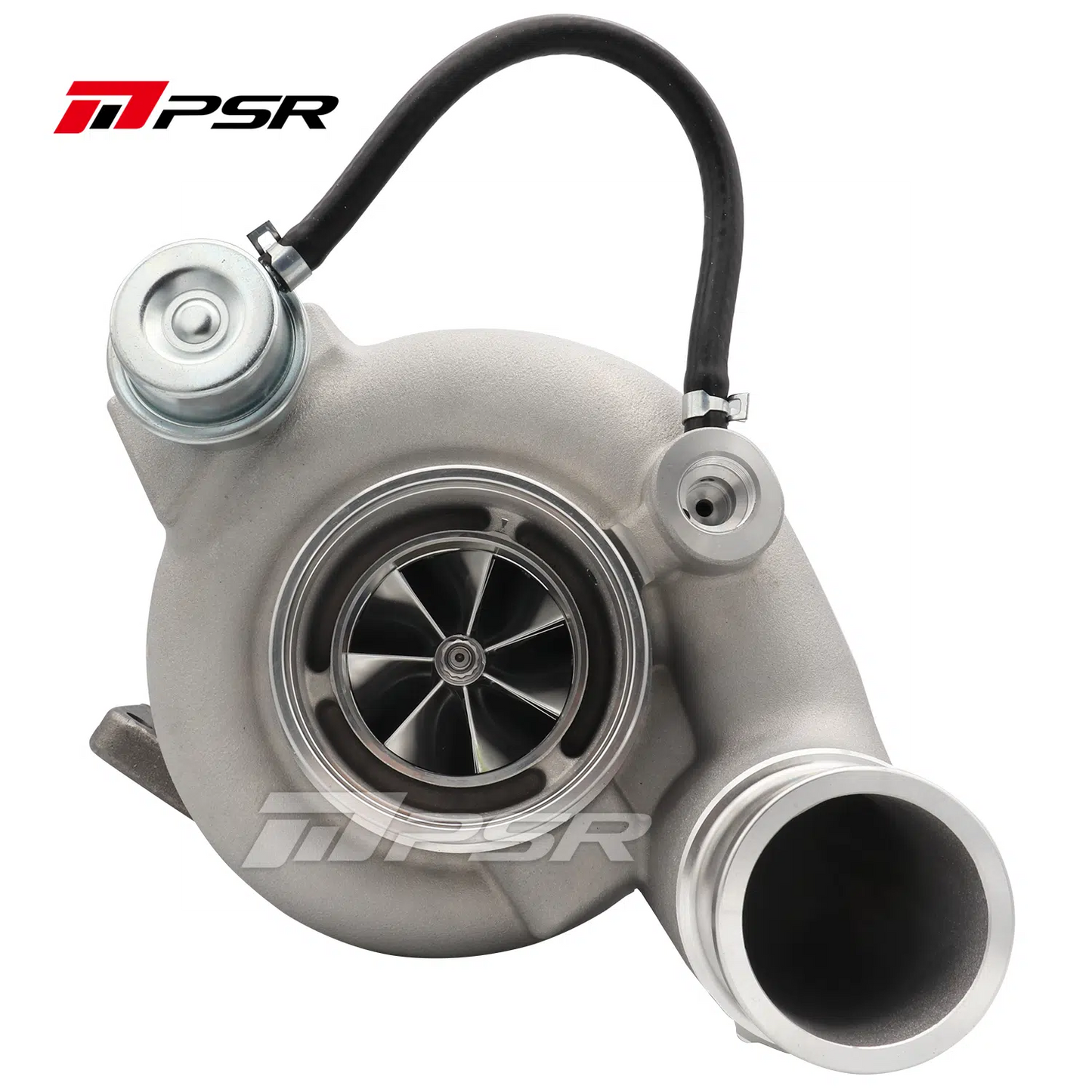

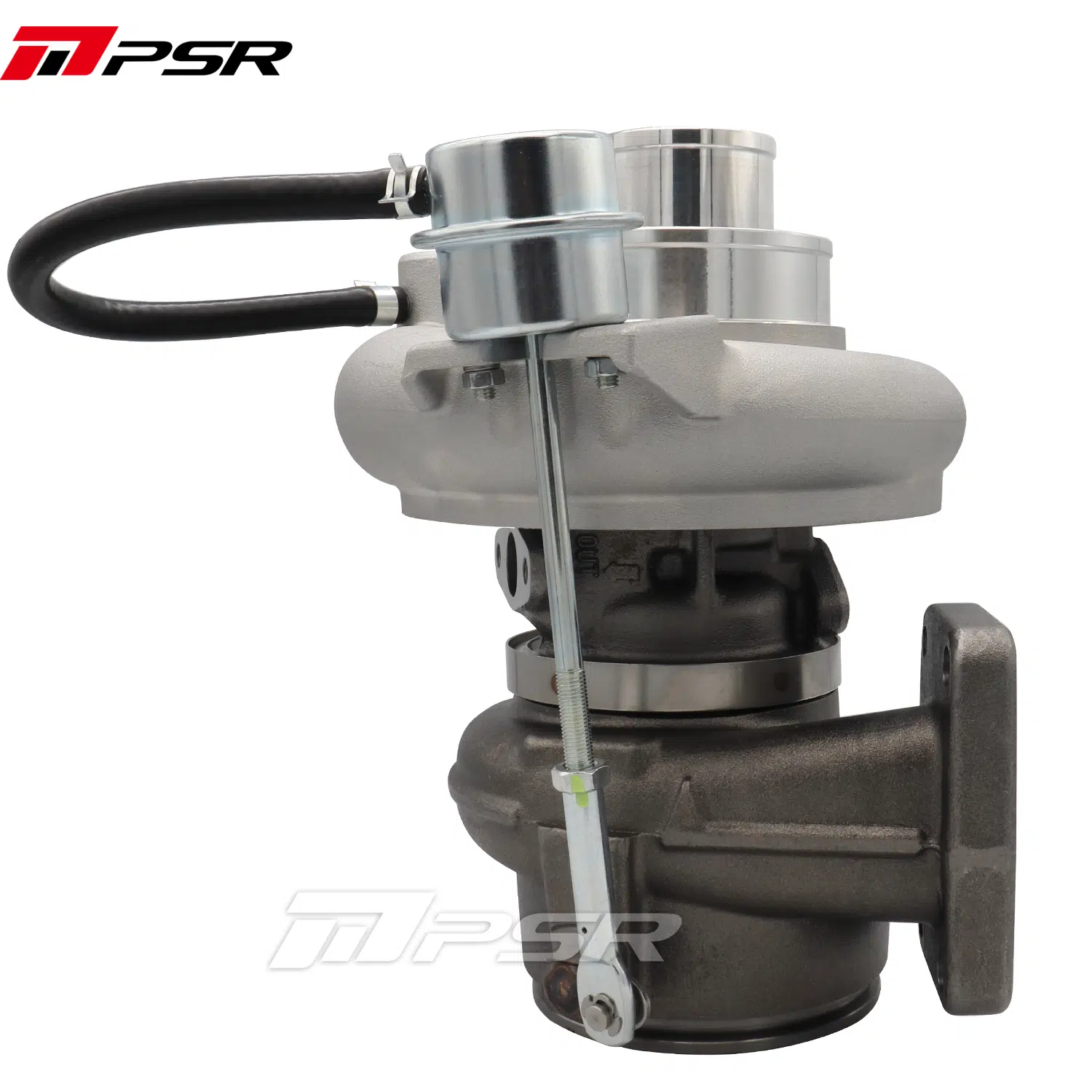

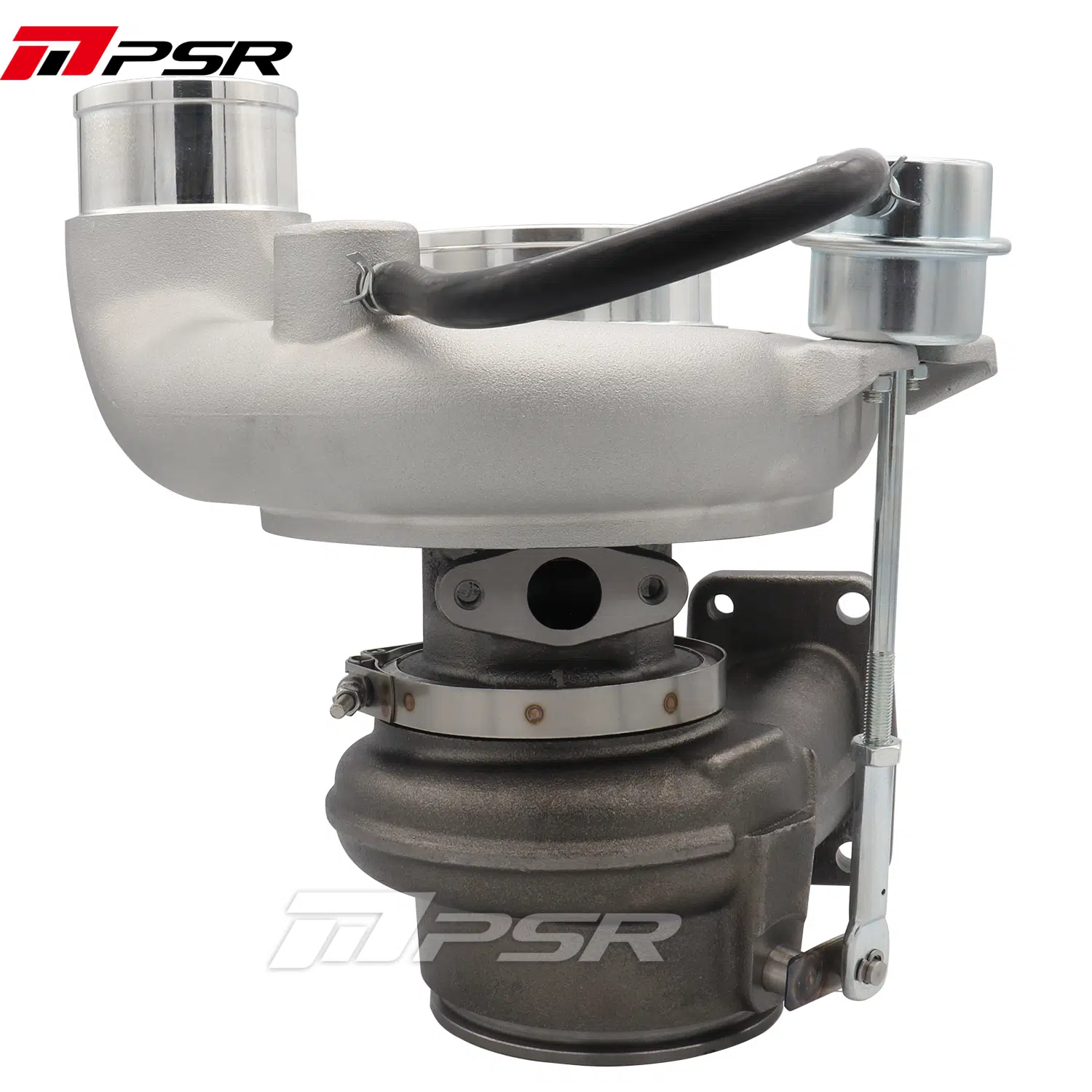

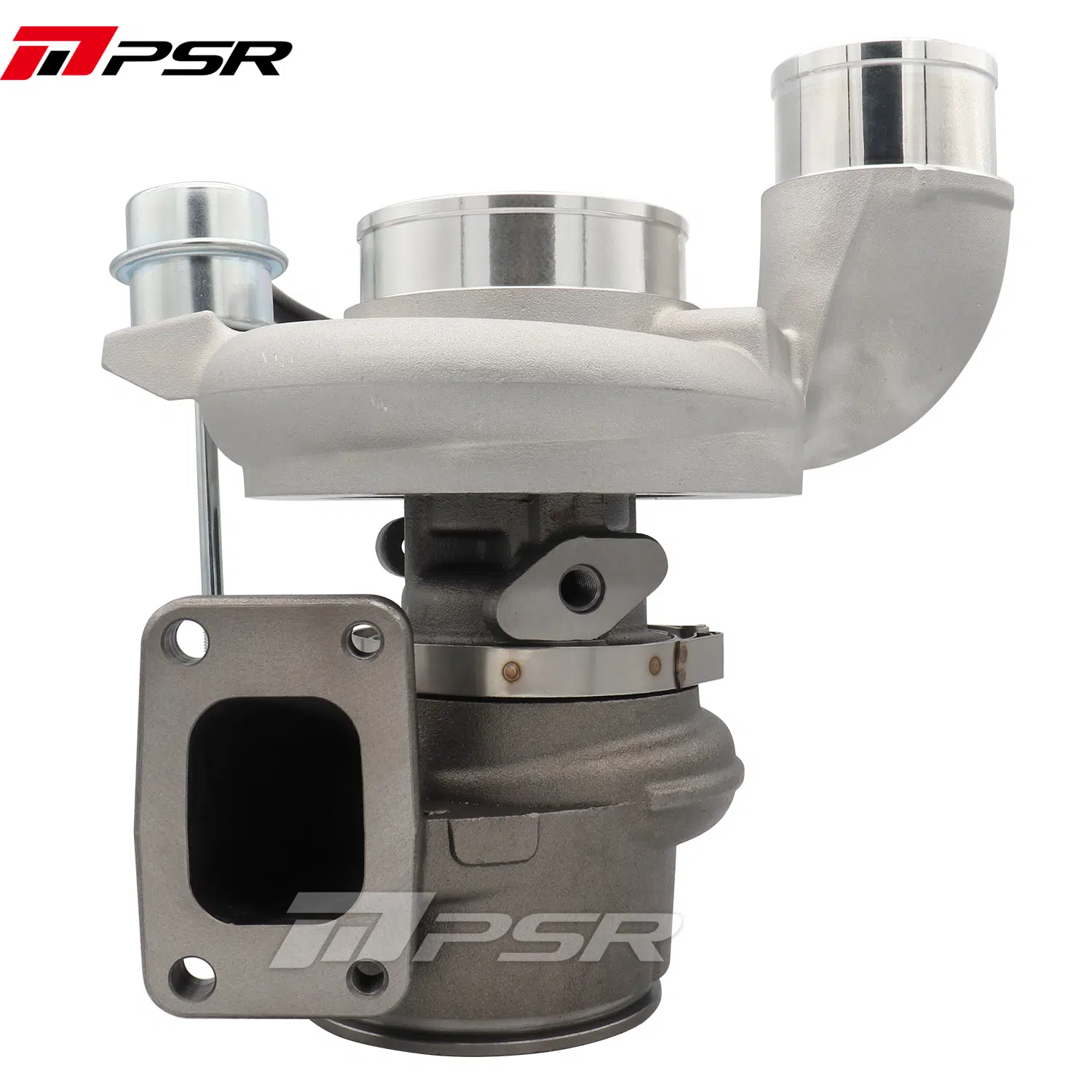

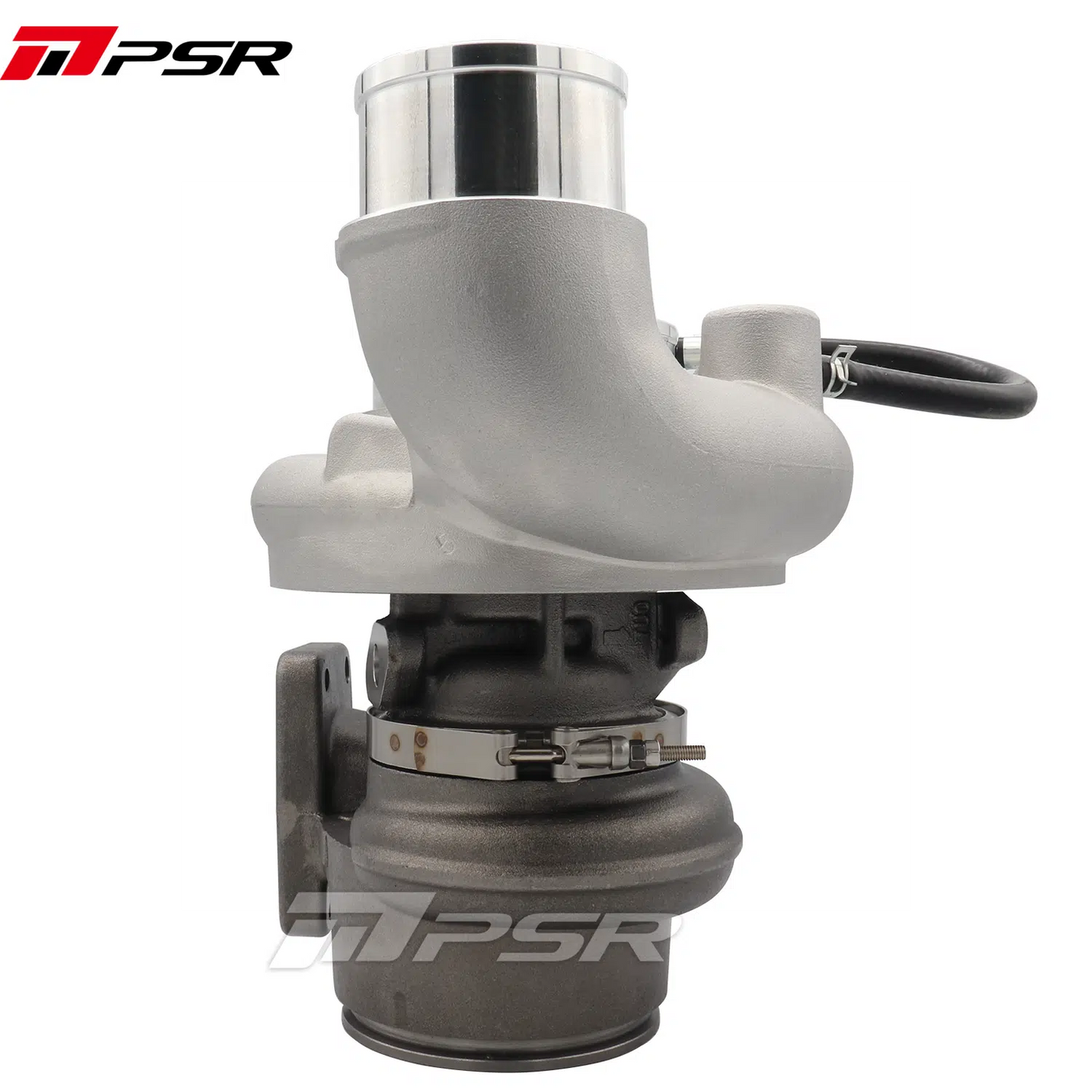

PSR 6767HE Stage 3 HE351CW Upgraded Turbo for 04.5-07 Dodge Ram 5.9L

Description

• Billet compressor wheel 67/89mm
• Upgraded 76/67mm turbine wheel for high flow
• 360 Thrust bearing CNC machined from Cooper Bar
• Stepped gap seal ring on compressor and turbine end
• Replace the stock turbo directly
• Fit for 04.5-07 Dodge Ram with Cummins 5.9L diesel engine, HE351CW TURBO

Stage 3:

This turbo comes with the bigger turbine wheel, 76/67mm, which is upgraded from 65/58mm.

It could greatly help to increase air flow and horsepower.

The compressor wheel is also upgraded to a 67mm billet one, which is good for up to 725hp!

Application:

Drop-in directly – No modifications are required

Fits for 2004.5-2007 Dodge Ram with Cummins 5.9L diesel engine, HE351CW TURBO

Item Details:

Billet Compressor Wheel Inducer: 67/89.1mm/95mm, 7+7 Blade

Turbine wheel: 76/67mm

Stepped gap seal ring on the turbine end

Stepped gap seal ring on the compressor end

Twin hydrodynamic journal bearings

360 Thrust Bearing CNC machined from COOPER BAR

Reference Part Number:

4043600 4036835 4037001 4089797 4089673 4037002 4089673 4089797

5143256AA R5143256AA? 100229R 4043600 4036836 4037001 4043600R
