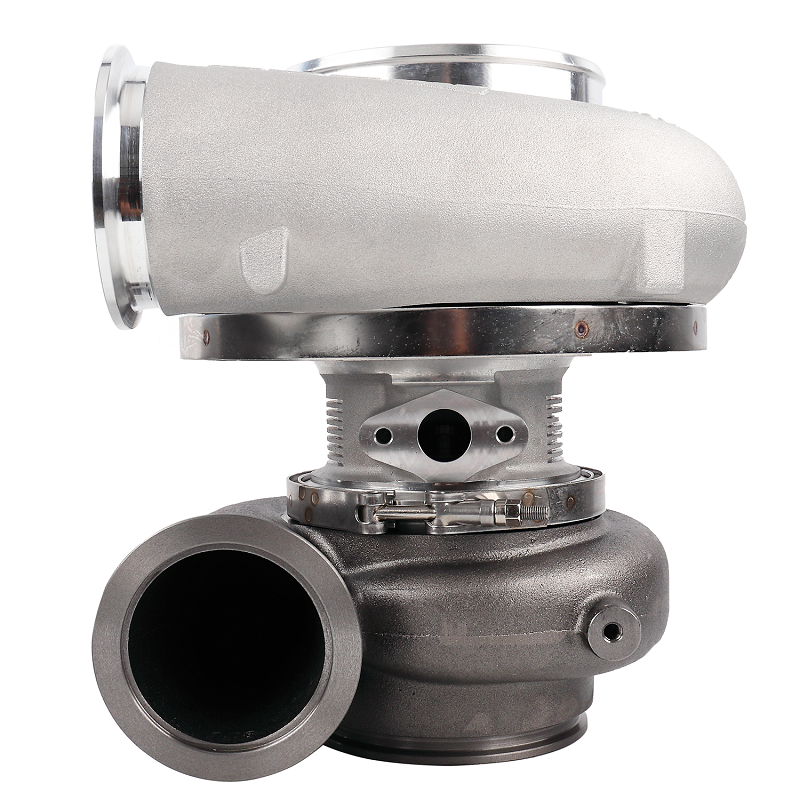

PSR 8894GR Dual Ball Bearing Turbocharger HP Rating for Class Legal Race

• Dual ceramic ball bearing system provides optimal turbo response & better durability by reducing the shaft-motion
• 7+7 Blade GR compressor wheel will get more air flow
• 9 Blade PTG-Aero Inconel 713c turbine wheel with more turbine flow
• Fin-cooled aluminum center housing, lighter weight
• Anti-surge ported-shroud compressor inlet, cover integrated with the speed sensor port
• Installation Hardware: 4” flange kit for Comp. Outlet, T6 Gasket/3.5” flange kit for Turb. Inlet, 5” flange kit for Turb. Outlet and oil Drain Fitting kit are included by default
• Oil Feed Fitting(-4AN ∅ 1.65mm (0.065″) Orifice) included

Description

• Compressor Wheel: 88.7×133.4mm, 7+7 Blade
• Turbine Wheel: 99*94mm
• Compressor Inlet: 6” Hose
• Compressor Outlet: 4” V-band
• Compressor Housing A/R: 0.88
• Turbine Inlet: 3.5” V-Band (DV Housings) or T6 Open
• Turbine Outlet: 5” V-Band
• Turbine Housing A/R: 1.08/1.23/1.39
• Oil Feed: See graph below(OIL INLET), an oil feed flange included: -4AN ∅ 1.65mm (0.065″) Orifice
• Oil Drain: See graph below(OIL OUTLET)
