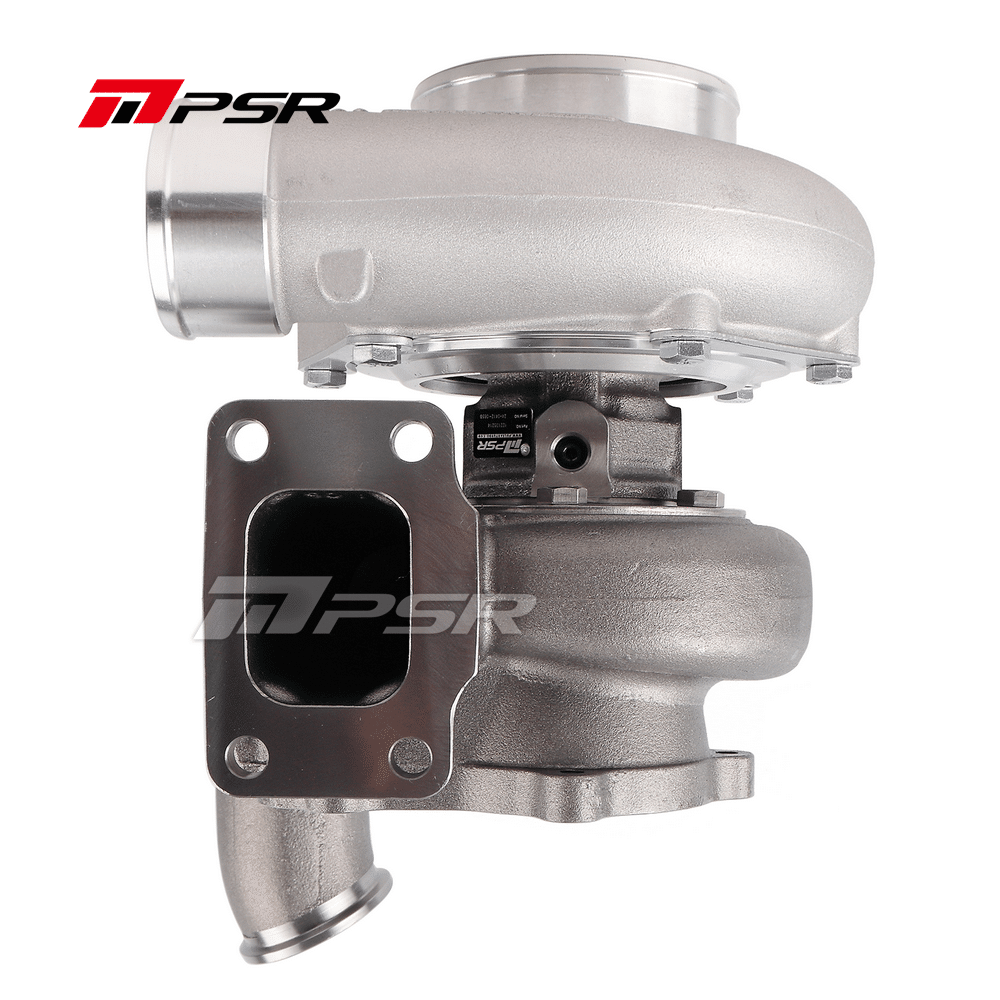

PULSAR Next GEN PSR6682 Turbocharger External Wastegate Version for Ford Falcon BA BF XR6

Name: PULSAR Next GEN PSR6682 Turbocharger External Wastegate Version for Ford Falcon BA BF XR6
Brand: Pulsar Turbo Systems New Zealand
Availability: InStock

$1,219.08 NZD - $1,553.08 NZD

Shipping calculated at checkout.

Product variants

Quantity

New Aerodynamic 10 blade billet compressor wheel flow more air over the stock cast or Gen1 11 blade billet wheel
New Aerodynamic 9 blade turbine wheel, less weight, lower inertia, and higher flowability
Genuine structure and rebuildable dual ceramic ball bearing system
Larger 0.72A/R compressor cover with Anti-Surge 4″ inlet
Billet actuator with black anodized coating
3 Layer Stainless Steel 5 Bolt Gasket

Description:

Compressor Wheel: 65.7*82.6mm (extended tip diameter: 85.29mm)
Turbine Wheel: 68*62.3mm
Compressor Inlet: 4″ Hose
Compressor Outlet: 2.5″ Hose
Turbine Inlet: T3 Open
Turbine Outlet: 5 Bolt
Turbine housing internal wastegate hole: 33mm
Water Ports: -6AN
Oil Feed: -4AN to the Oil Restrictor
Oil Drain: Std T3 Oil Drain Flange
Actuator working pressure: 15psi/10psi/5psi

Application:

Replacement for factory XR6 PT3582 PT3576 Turbos.

2002- BA FALCON XR6
2004- BF FALCON XR6
